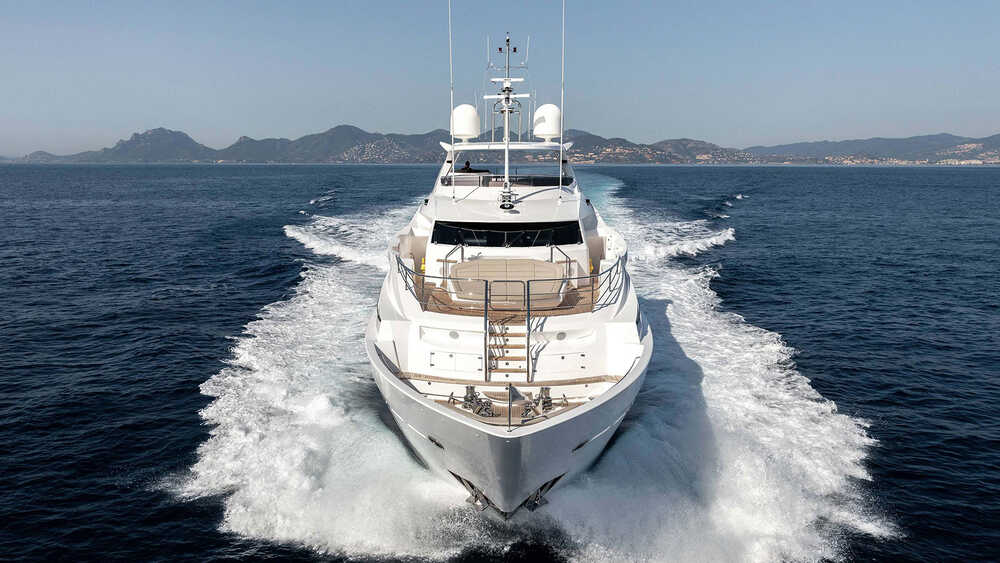

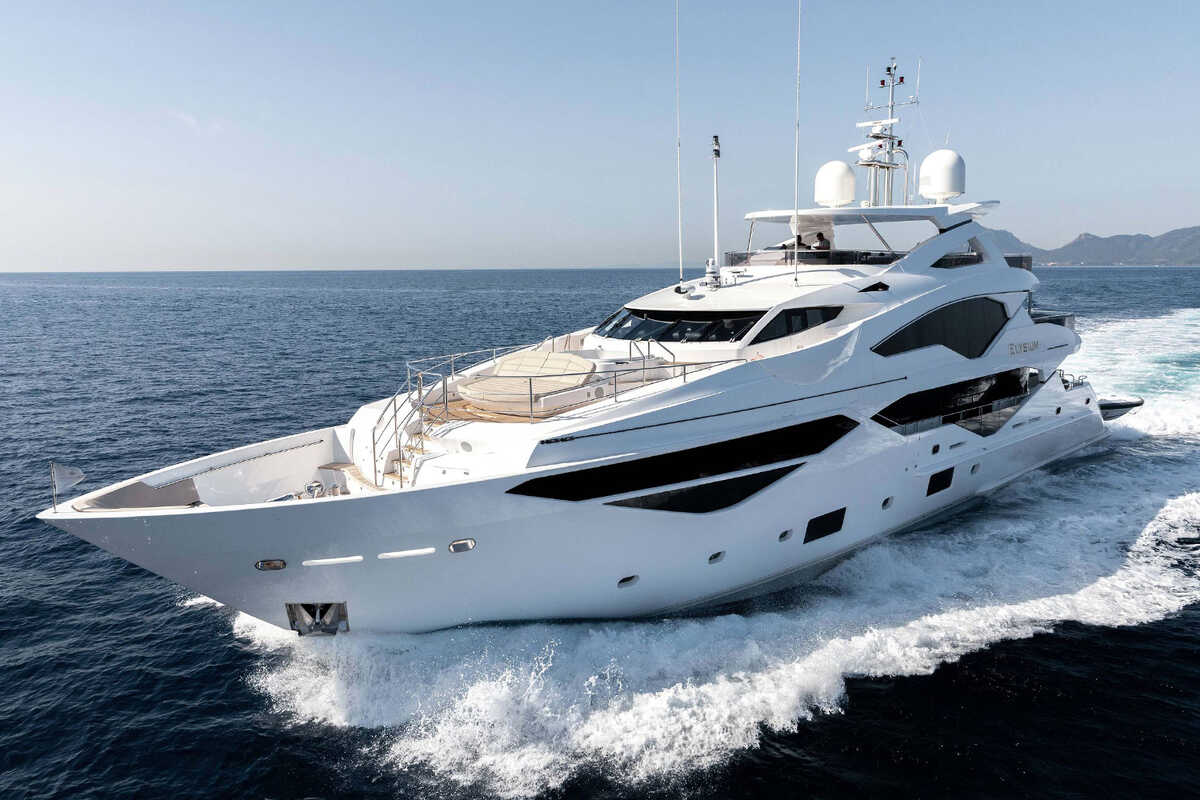

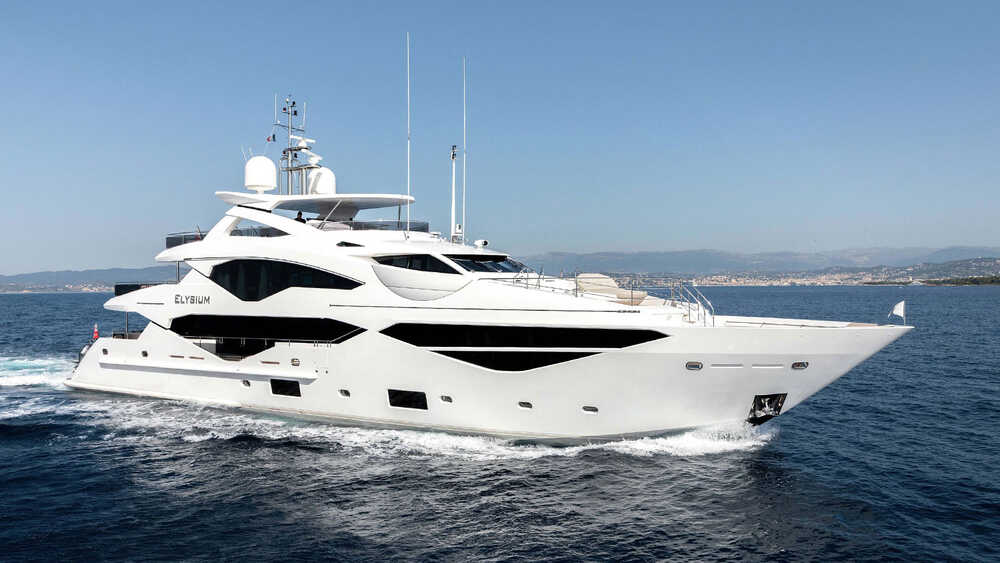

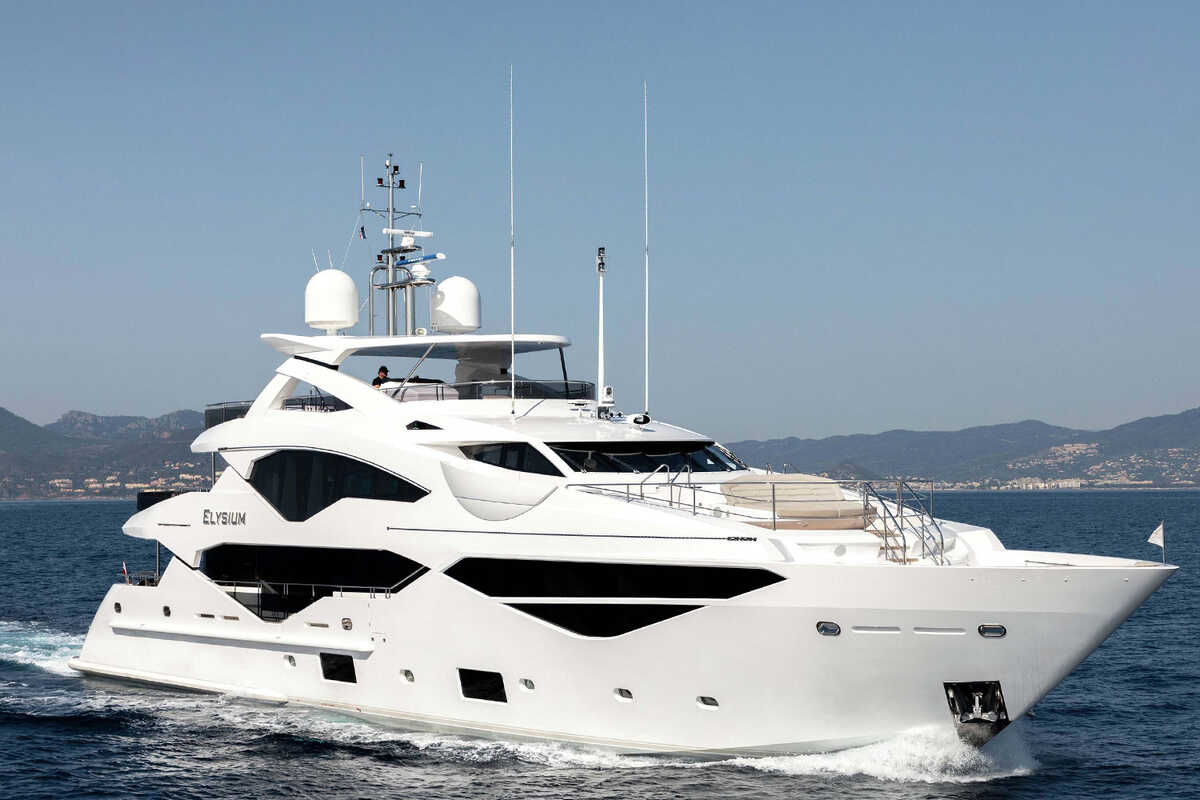

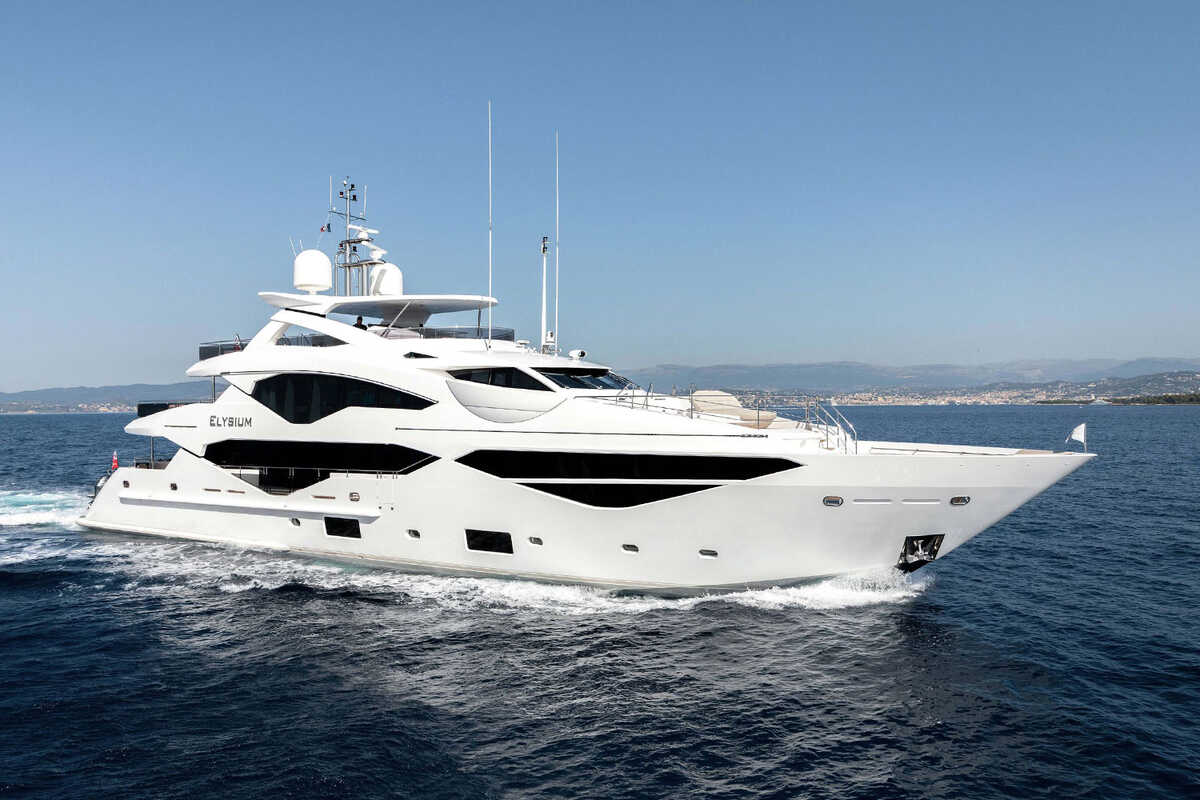

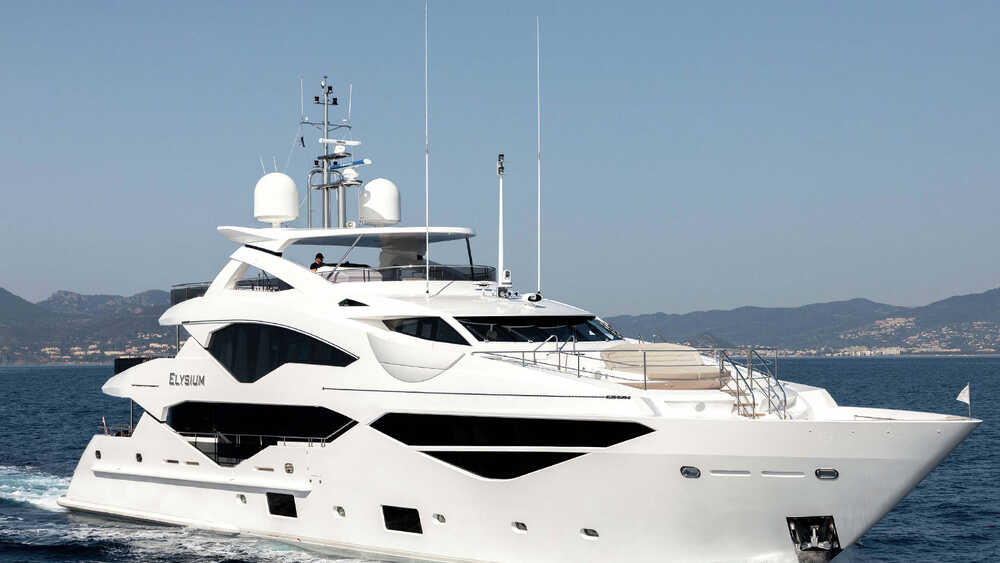

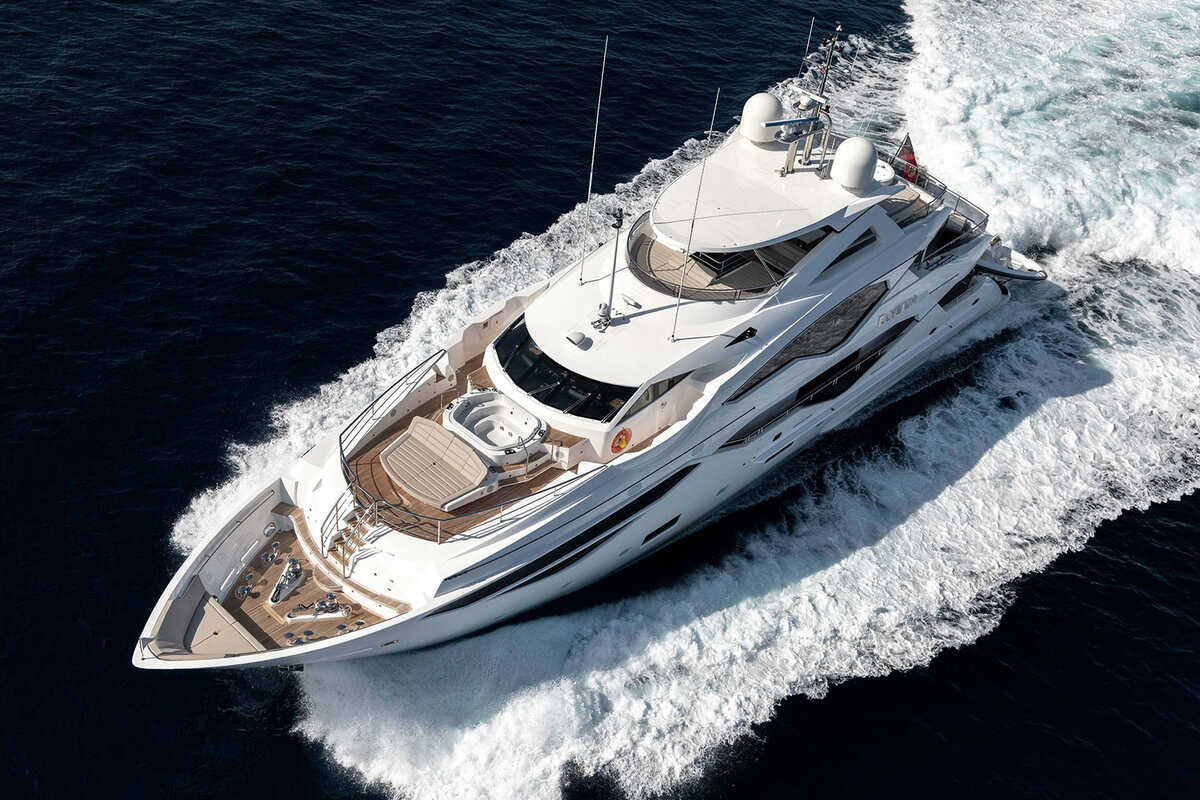

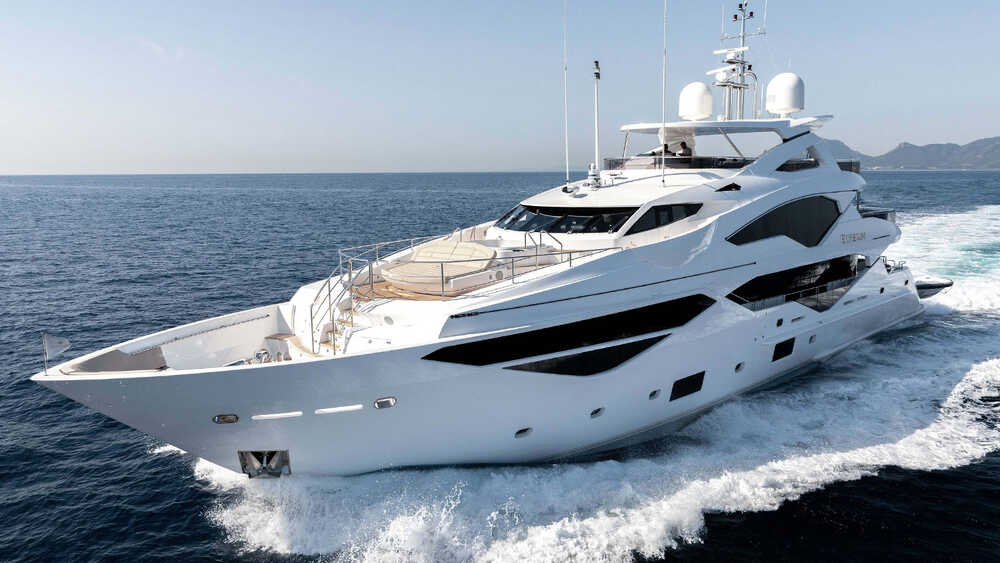

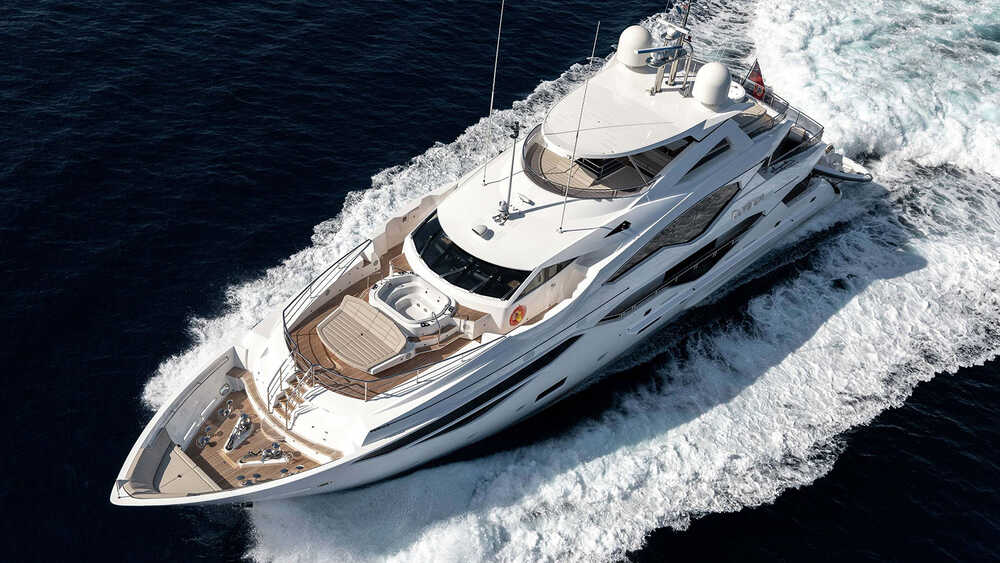

Luxury superyacht Sunseeker 131

• ELECTRICITY - AC 220V 50Hz sockets - UK 3 pin
• GENERATORS - Two Kohler 80kW 400/230V 3-phase 50Hz - 80EFOZDJ with sound shields
• SHORE POWER - Single 125A plugged flexible cable on electric reeling system. Single 125A plugged loose flexible 20M cable via fixed inlet connected to shore power converter Atlas 90 kVA-SPA-II series 50Hz. Input 180-530V single or 3-phase up to 90kVA, output 230/400V 50Hz 3-phase 90kVA

• WATERMAKER - Idromar watermakers 180 litres/per hour (MC3J-180A-2) 380V 50Hz-3 phase

• AIR CONDITIONING - Marine Air MCG V120 Modular Chiller 4 x 120000BTU & two Marine Air VCD27K (54,000 BTU) self-contained units
• BOW THRUSTER - Hydraulic system 100HP ABT.TRAC 20 (513mm GRP tunnel)
• FIRE/BILGE PUMP - Gianneshi self-priming centrifugal 400V 3 50Hz 7.5kW
• and secondry Gianneshi self-priming centrifugal pump powered by an independent diesel engine located in the pump room
• FUEL SEPERATOR - Alfa Laval MIB303 fuel cleaning centrifugal separator 240V 1-phase 50Hz 450 litres per hour
• RUDDER ANGLE INDICATOR - Simrad RF45X
• SEWAGE TREATMENT - ECOmar 32 (3,200 litres per day) 230V 1-phase 50Hz
• STABILIZERS - ABT.TRAC 440 digital Fin stabilization system 20X Fin (2.5
• STERN THRUSTER - Hydraulic system 65HP ABT.TRAC 16 (412mm GRP tunnel)
• WC's - Tecma Silent Plus 220Volt AC macerating toilets

• 6 x 9 litre AFFF Foam fire extinguisher
• ALARMS - Fireboy-Xintex fire alarm detection system with model 90900 control panel and dedicated smoke/heat detectors in all accommodation area
• 1 x 2kg CO2 fire extinguisher
• 4 x 5kg CO2 fire extinguisher
• 4 x Drager 6 litre 200 bar steel oxygen cylinders
• 2 x Drager PA 91 breathing apparatus set
• 2 x Drager Panorama breathing apparatus mask
• 20 x Drager Parat C smoke hood
• 10 x 6kg Dry Powder fire extinguisher
• Fire blanket
• FIRE FIGHTING - Sea-Fire FM-200 H-Series fixed machinery space fire extinguisher system
• 2 x Fireguard fireman outfits
• 2 x fireman’s axe
• 2 x Hansson Ikaros M.O.B smoke and light signals
• 4 x Hansson Ikaros line throwers including spare rockets & igniters
• 6 x Hansson Ikaros rocket flares
• McMurdo S4 SART
• 2 x Ocean rescue line
• Ocean Signal S100 SART
• Pilot ladder
• SAFETY - McMurdo E5 EPIRB
• Spare AFFF solution
• 2 x SOLAS approved child lifejacket
• 22 x SOLAS approved adult automatic lifejacket
• 2 x 2.5kg SOLAS lifebuoys
• 2 x 4kg SOLAS lifebuoys with MOB light and smoke beacons
• 2 x steel cored fireman safety line
• 2 x Wolf TR 24 AT EX fireman torches
• 20 x Wessex immersion suit
• 4 x Zodiac 10 person SOLAS A life rafts

• CELLULAR SYSTEM - Iridium 9555 satellite phone system with docking station
• 2 x Icom IC GM1600E and BP234 handheld portable VHF’s
• MF RADIOTELEPHONES - Sailor 6310 MF/HF 150W radiotelephone
• SATCOM - Sailor 6110 Inmarsat C with LRIT
• Simrad RS90 Class D VHF/DSc
• 2 x Simrad TC GMDSS VHF Handsets
• TELEPHONE EXCHANGE - Panasonic PABX telephone exchange system KX-TES824 throughout yacht
• VHF RADIOTELEPHONES - Sailor 6222 Class A VHF-DSc

• AUTOMATIC PILOT - Simrad AP70 autopilot display
• CHART PLOTTER - Transas Navi-Sailor 4000 ECDIS
• ECHO SOUNDER - Furuno FE800 50KHz with 50B-6B transducer
• Furuno FA170 Class AIS transponder with GPS and VHF antenna
• GPS - Furuno GP170 GPS navigator with GPS antenna
• LOG - Sperry Naviknot 350E with FNFII through hull sensor
• NAVTEX - Furuno NX700B
• RADAR - Furuno radar FAR1518-BB X-band 9GHz 12Kw with 6.5’ open scanner and Furuno processor RPU-013
• Rudder angle indicator Simrad RF45X
• SATELLITE COMPASS - Hemisphere GNSS V103
• Simrad Halo 4 Pulse Compression Radar (X-Band)
• SIMRAD NSO EVO2 Chart
• Tijssen CCTV camera system with 8 dedicated camera
• WIND INSTRUMENTS - Furuno ultra sonic wind sensor

• AFT WARPING CAPSTANS - Lewmar C10 2 Way hydraulic fitted port and starboard
• ANCHOR WINDLASS - Lewmar V10 hydraulic powered windlass
• AWNING - Custom extended fixed bimini in place of the standard
• BOAT CRANE & DAVITS - Crane mounts positioned under teak to allow for conversion of plunge pool to a rescue tender station
• GROUND TACKLE - Two Manson Kedge 210kg polished stainless steel bow anchors with two lengths of 19mm high tensile galvanised studlink chain required in lieu of standard, both 185 metres in lieu of standard to maximise chain length

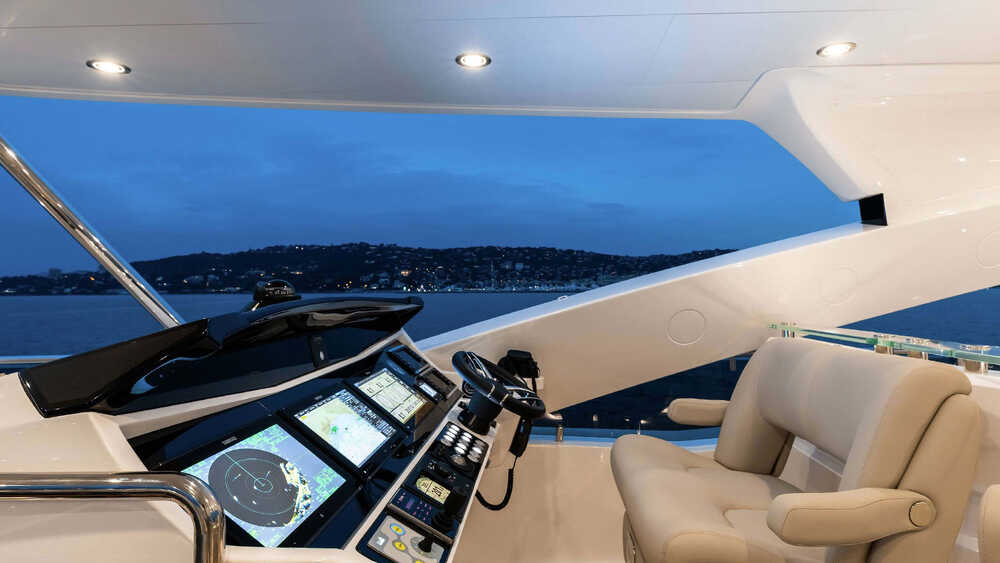

• HELM STATION - Custom sun deck layout to include helm console on starboard side mounted on GRP mounted plinth, additional to wheelhouse. This is a stand-alone system to the bridge, with separate BNWAS and all functions available.
• Jet Ski overhead crane and chock system
• PASSERELLE - Custom Besenzoni hydraulic three stage telescopic stainless steel 6.1m passerelle
• SEARCHLIGHT - 2 x remote VX500V2 Francis Voyager searchlights 150W Xenon 24V – 7,600,000cd
• SIDE BOARDING LADDERS - 8 step side mount stairway with hull fittings port and starboard
• SWIM PLATFORM - Full beam bathing platform in lieu of standard with increased capacity to a SWL 1,500kg
• Vertical Gypsy & Capstan drum

AUDIO/VISUAL ENTERTAINMENT SYSTEMS

• Sonance VP65RXT speakers throughout interior and exterior connected to Sonos Connect and amplifiers.
• SUN DECK - 10 x Sonance VP65R XT Extreme speakers and 2 x Speakercraft subwoofers with Sonos Connect amplifier

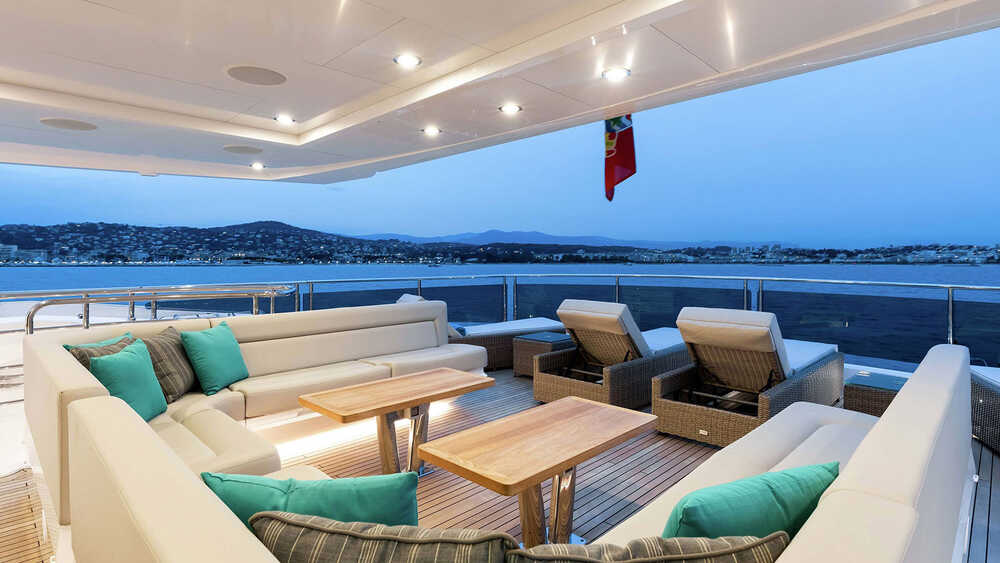

• UPPER DECK - 6 x Sonance VP65R XT Extreme speakers and 2 x Speakercraft subwoofers with Sonos Connect amplifier aft
• 8 x Sonance VP65R XT Extreme speakers and 2 x Speakercraft subwoofers with Sonos Connect amplifier in wheelhouse
• OWNER’S SUITE - Samsung 55” LED television installed in a marine in-ceiling mechanism
• BOSE Lifestyle 600 5.1 system with Sonos Connect, Apple TV and HDMI socket
• GYM - Samsung 40” HD LED television
• BOSE Wave SoundTouch music system with IV. Sonos Connect, Apple TV and HDMI socket

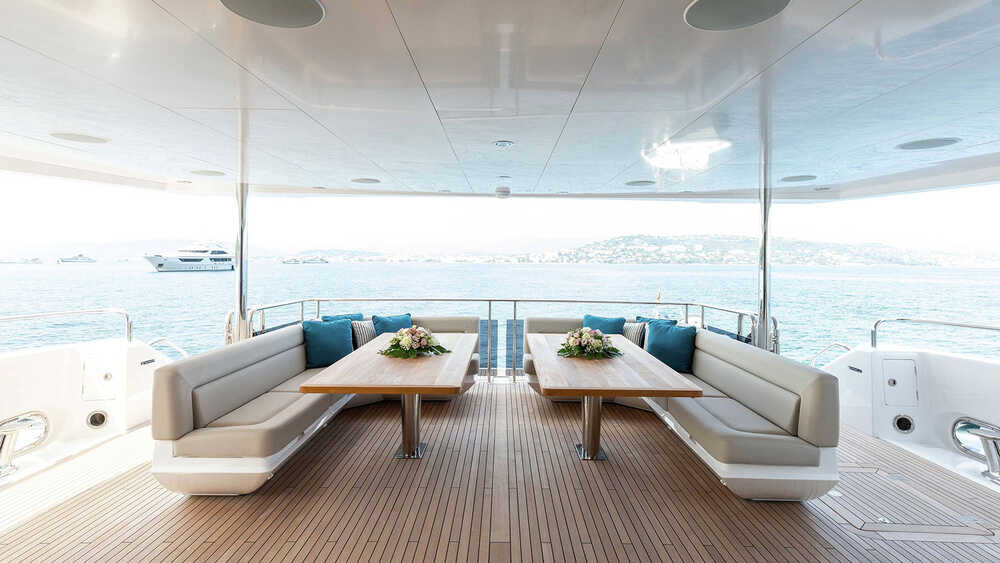

• MAIN DECK AFT - 6 x Sonance VP65R XT Extreme speakers and 2 x Speakercraft subwoofers with Sonos Connect amplifier
• MAIN SALOON - Samsung 55” HD LED television with rise and fall mechanism and 180 degree swivel
• BOSE Lifestyle 600 5.1 system with Sonos Connect, Apple TV and HDMI socket
• VIP SUITE - Samsung 55” HD LED television
• BOSE Lifestyle 600 5.1 system with Sonos Connect, Apple TV and HDMI socket
• LOWER GUEST - Samsung 40” HD LED television in all lower guest cabins
• BOSE Lifestyle 600 5.1 system with Sonos Connect, Apple TV and HDMI socket
• CREW AREAS - Samsung 40” HD LED television in crew mess
• BOSE Lifestyle 600 5.1 system with Sonos Connect, Apple TV and HDMI socket in crew mess
• Samsung 22” HD LED television in captain’s cabin
• Fusion MS-AV750 DVD/CD/FM Tuner with Bluetooth function and speakers in all crew cabins
• GALLEY Fusion MS-AV750 DVD/CD/FM Tuner with Bluetooth function and speakers in all crew cabins
• LAZARETTE - 2 x Sonance VP65R XT Extreme speakers and 2 x Speakercraft subwoofers with Sonos Connect amplifier

• 12 guests in 6 cabins

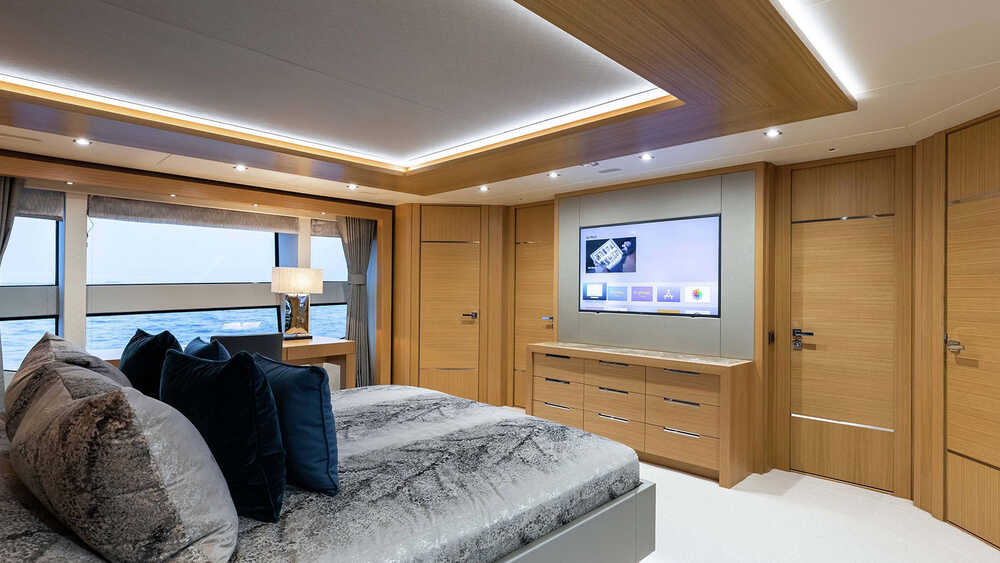

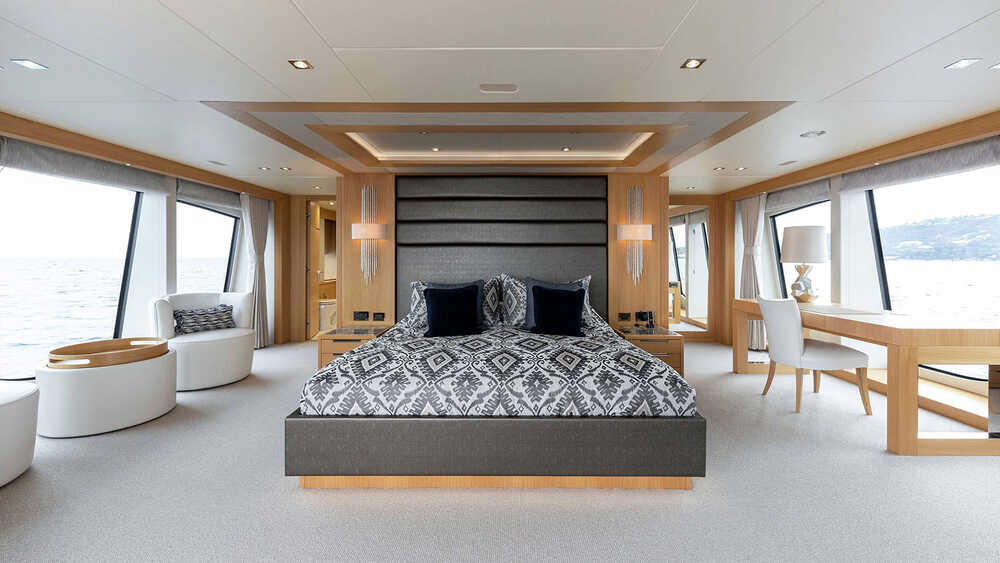

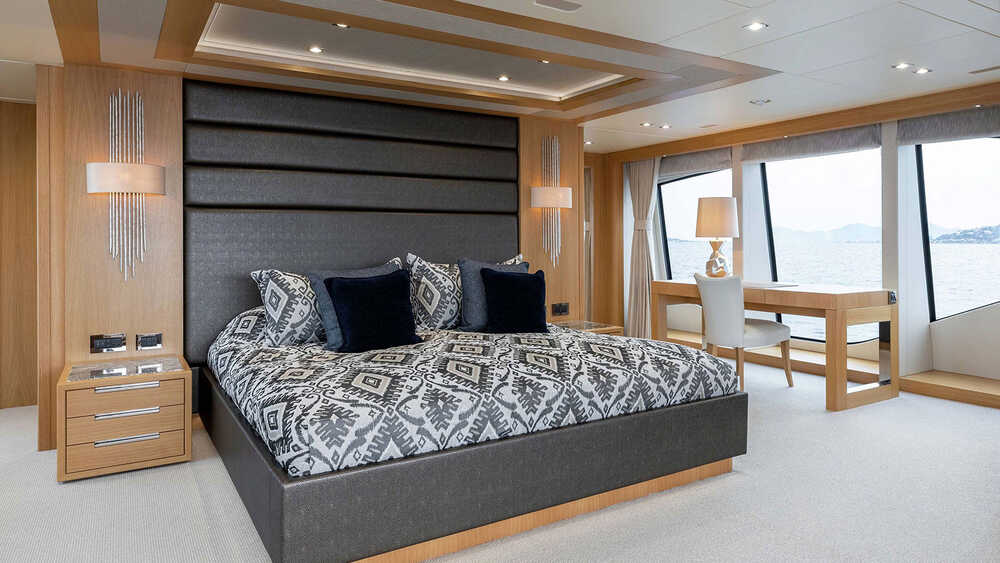

• OWNER - Full beam owner’s suite on upper deck with en suite, walk-in wardrobes and private deck

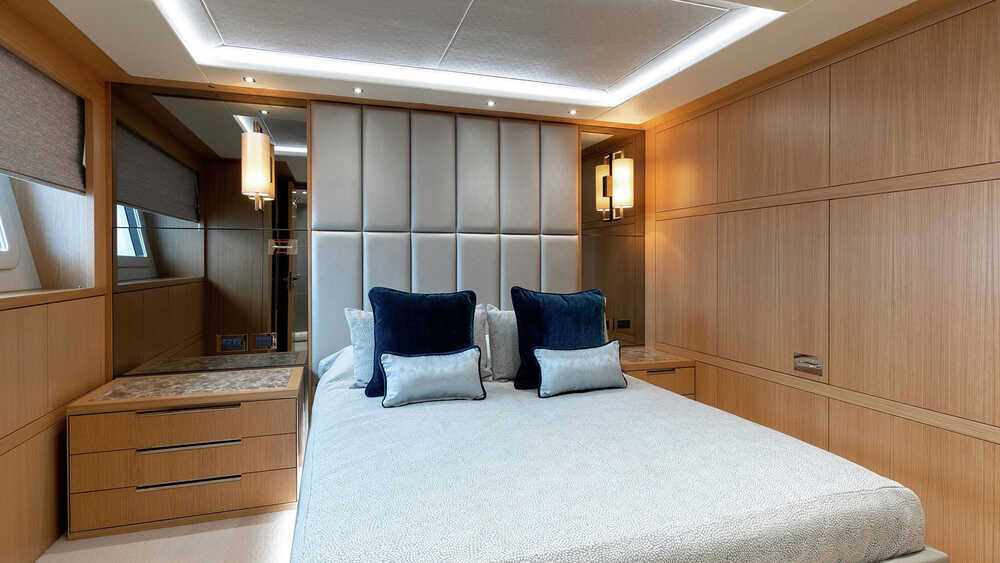

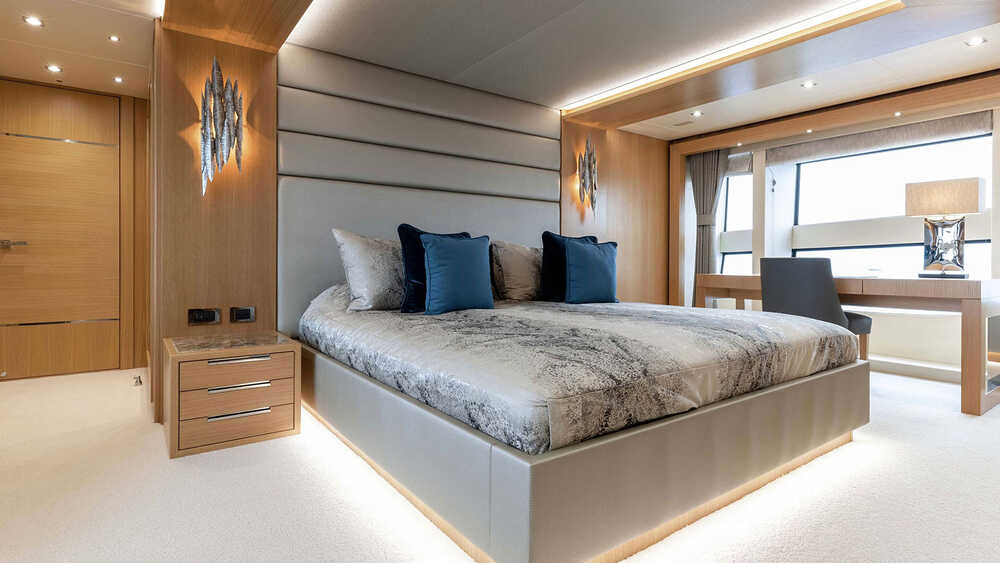

• GUESTS - 1 x VIP cabin on the main deck with en suite and fitted wardrobes (large central shower in lieu of bath and extended wardrobes on port side)
• 3 x double cabins on the lower deck with en suite and fitted wardrobes
• 1 x twin cabin on the lower deck with en suite and fitted wardrobes (can be converted into a double cabin)
• CREW - 4 x cabins on the lower deck with en suite

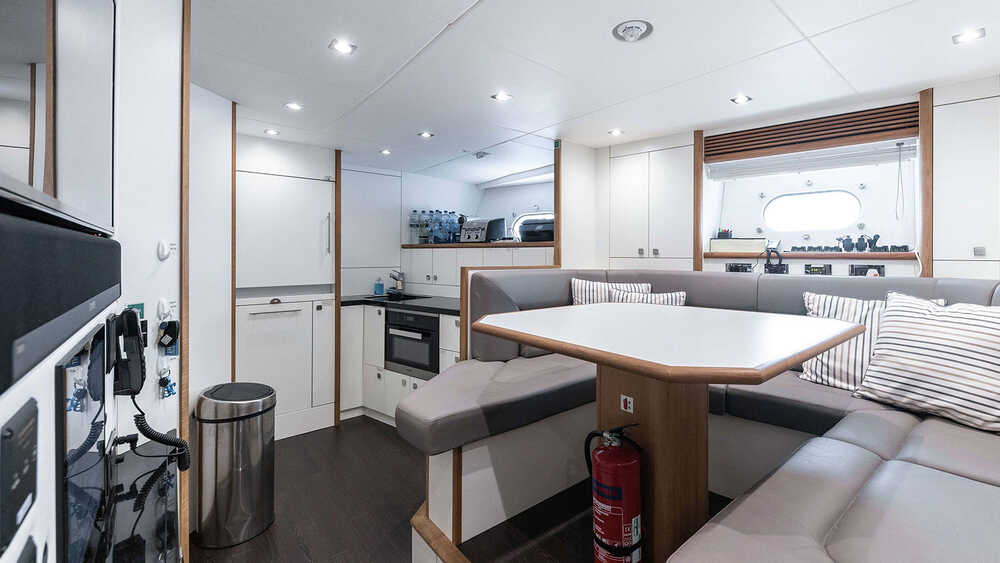

• CREW MESS - Miele refrigerator K9122UI GB- 137 litres
• Custom integrated Systemair KE 50-25-4 – 230V 1-phase 50Hz extraction fan
• Icemaker Victrofrigo Classic
• LOWER LAUNDRY - Miele washing machine PW6065 PLUS
• MAIN DECK AFT - Ice Maker ‘Victrofrigo Classic’
• MAIN DECK LAUNDRY - Miele washing machine PW6065 PLUS

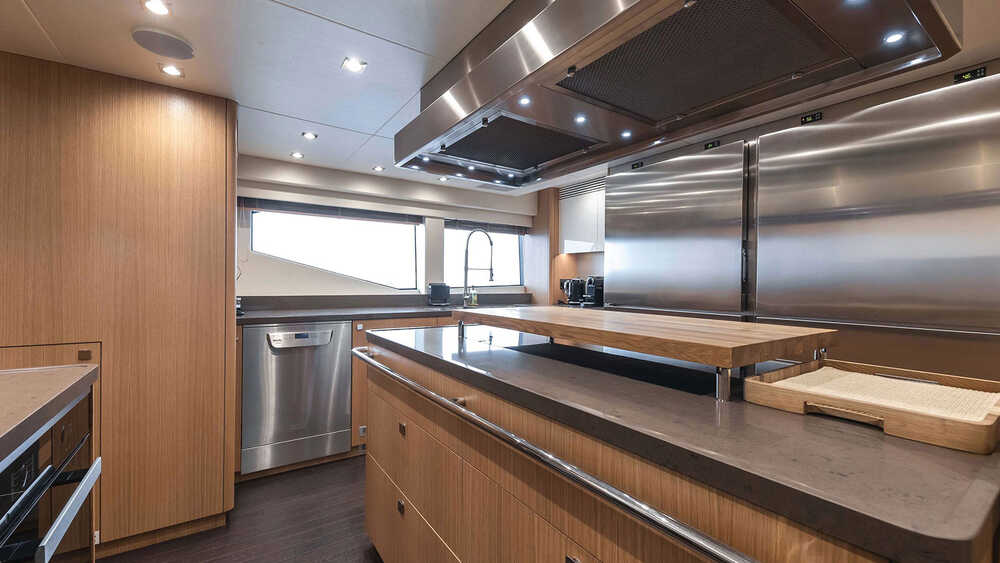

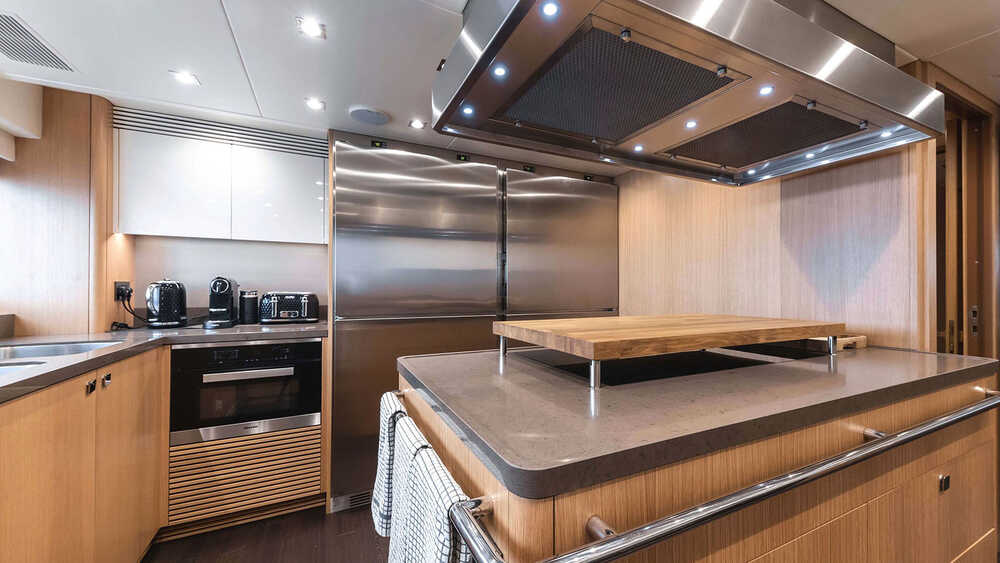

• MAIN GALLEY - 2 x Miele H6460BP single convection oven
• Miele dishwasher PG8056
• Miele H6200BM combination microwave convection oven
• Miele KM6879 induction hob 5 zone – 900mm
• Miele KWT 6321UG built in wine cooler (34 bottles)
• Miele M6260TC microwave oven 46 litre
• Miele tumble dryer PT7135 C PLUS
• Miele tumble dryer PT7135 C PLUS
• Nespresso Krups XN730T coffee machine
• OWNER’S SUITE - HiPro mini-bar
• SUNDECK - Icemaker Victrifrigo Classic and Waeco Coolmatic CR-110
• UPPER DECK AFT - Waeco CR60 refrigerator

• 4 x Seabobs F5s with quick charge
• 4.2 metre Yamaha 40hp crew tender (both tenders by separate negotiation)
• Custom Pheonix Full Beam Swim Platform Capable of lifting a 7m tender up to 1,500Kg
• Inflatable Paddle boards and Kayaks
• Jet ski overhead crane and chock system for Seadoo RXP-X300 client supply
• TENDERS 7 metre RIB tender
• Waterskis
• (all watersports equipment by separate negotiation)

• Aft deck bar
• BIMINI - Custom extended sundeck GRP hard-top
• Domestic safe MD 281 C in all lower guest cabins (W280mm x H165mm x D235mm)
• Domestic safe MD 281 C in Captains Cabin (W280mm x H165mm x D235mm)
• Domestic safe MD 281 C in wheelhouse (W280mm x H165mm x D235mm)
• Equipment includes:
• FENDERS - FenderTex

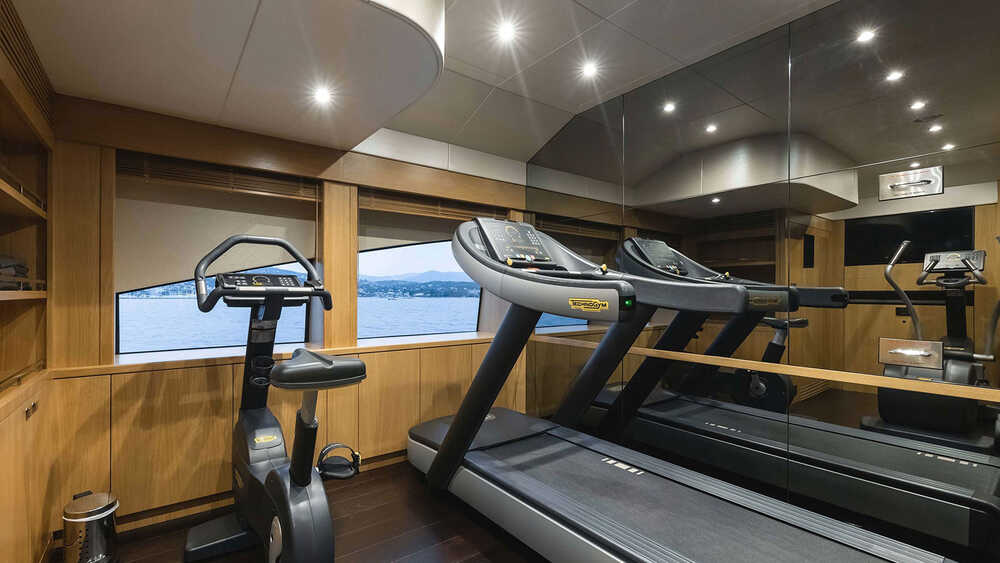

• GYM EQUIPMENT - Custom gym on upper deck in lieu of captain’s cabin (plumbing and electrics remain for option to convert into a captain’s cabin).

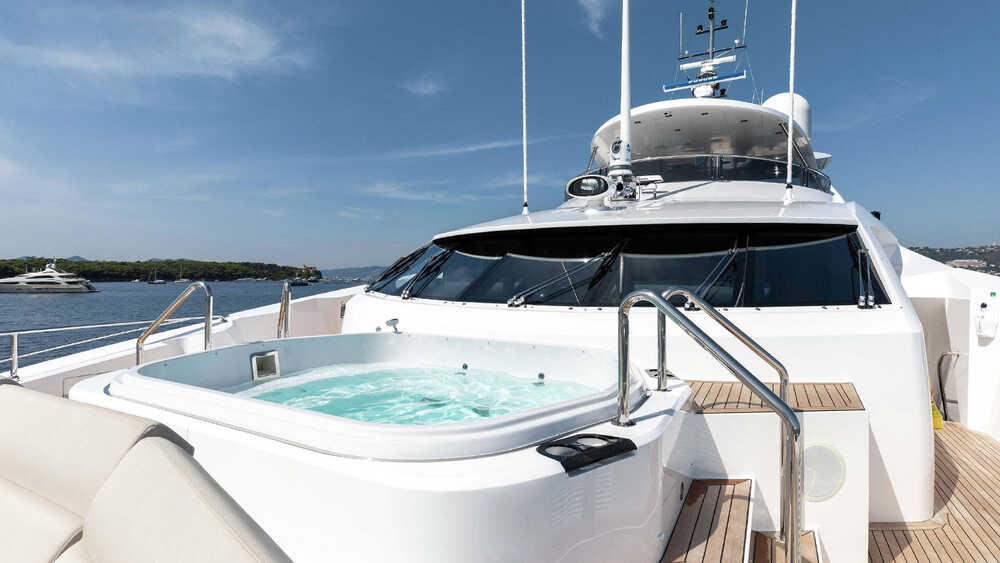

• JACUZZI DIP POOL - 1 x Sunseeker Sport 115 Yacht Catalina plunge pool upper deck forward (replacing the rescue tender). Fresh water filled - heated via hubble heater. Fresh water filled – unheated from the main fire pump (under 2 minutes) –

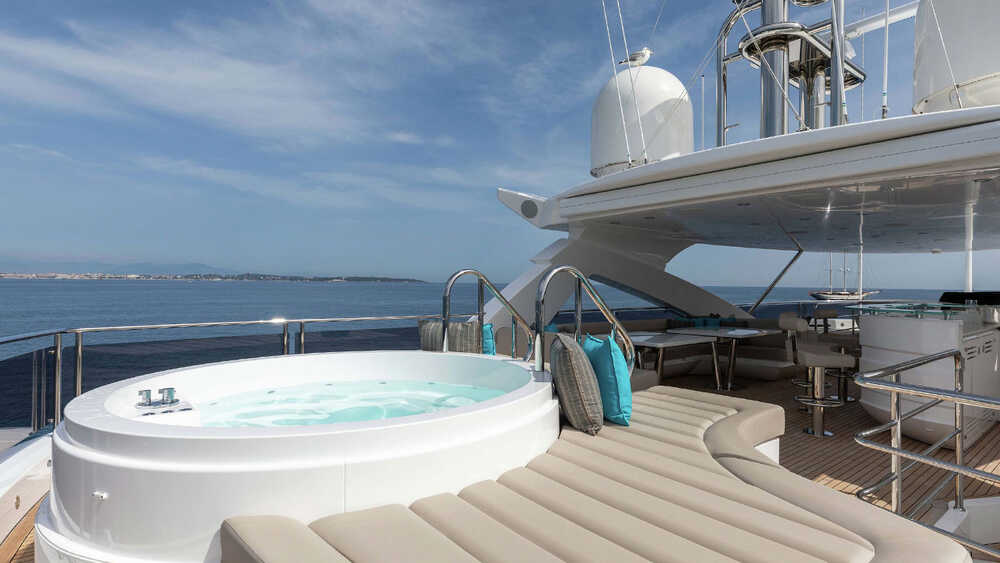

• Jacuzzi sundeck aft
• SHIP'S SAFES - Domestic safe MD 281 C in owner’s walk-in wardrobe (W280mm x H165mm x D235mm)

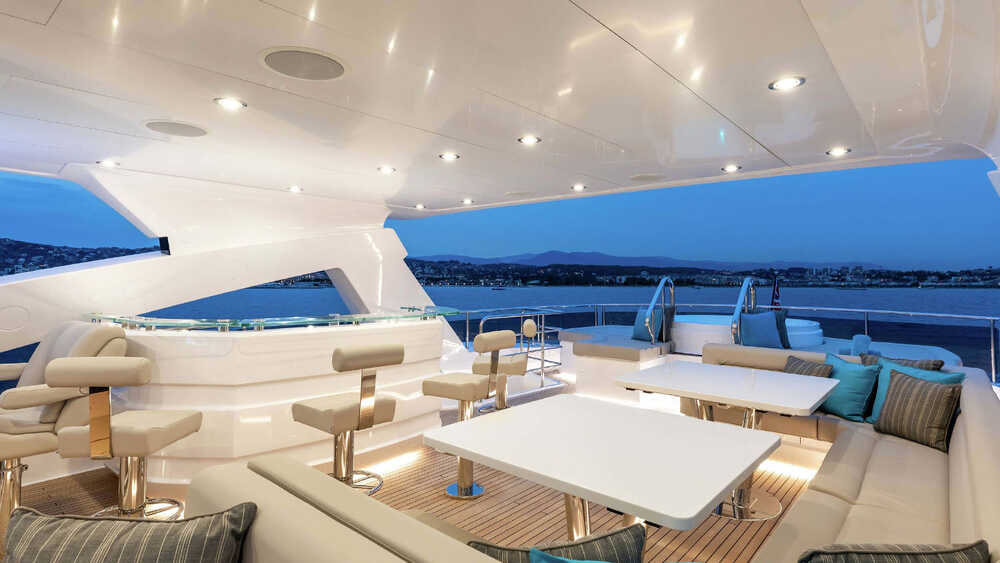

• Sundeck wet bar
• Technogym Excite Run 1000, Technogym Excite Synchro Cross Trainer and Technogym Excite Bike
