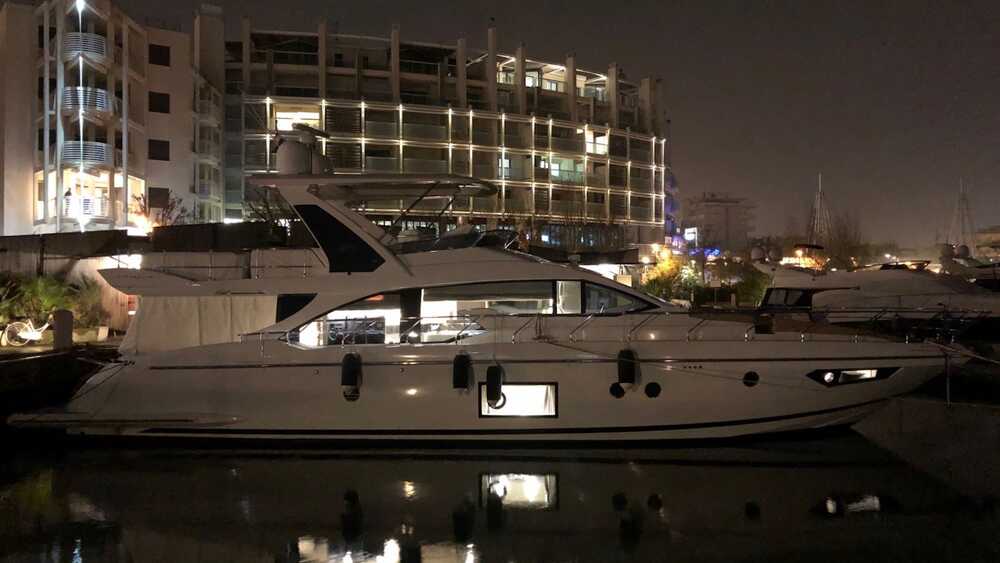

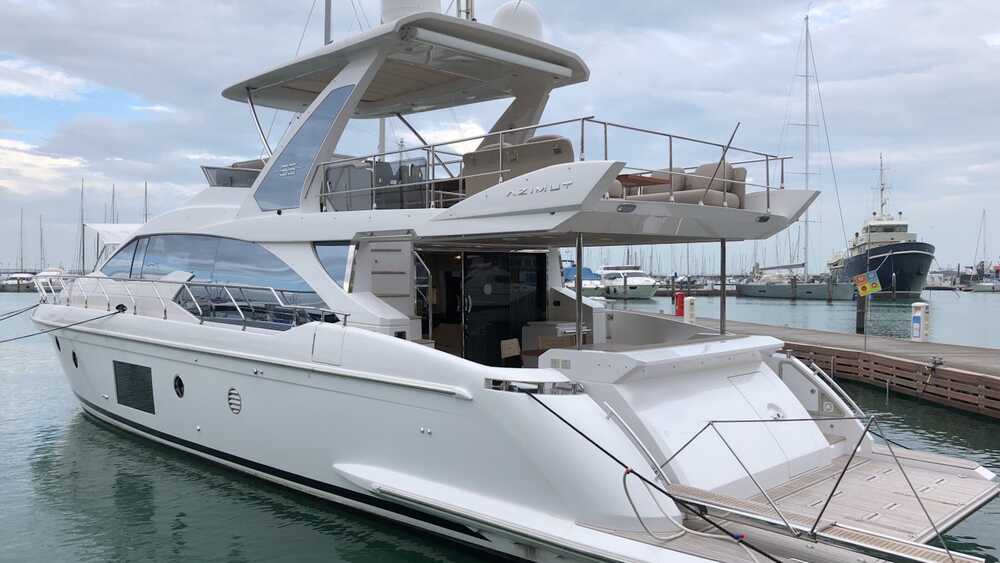

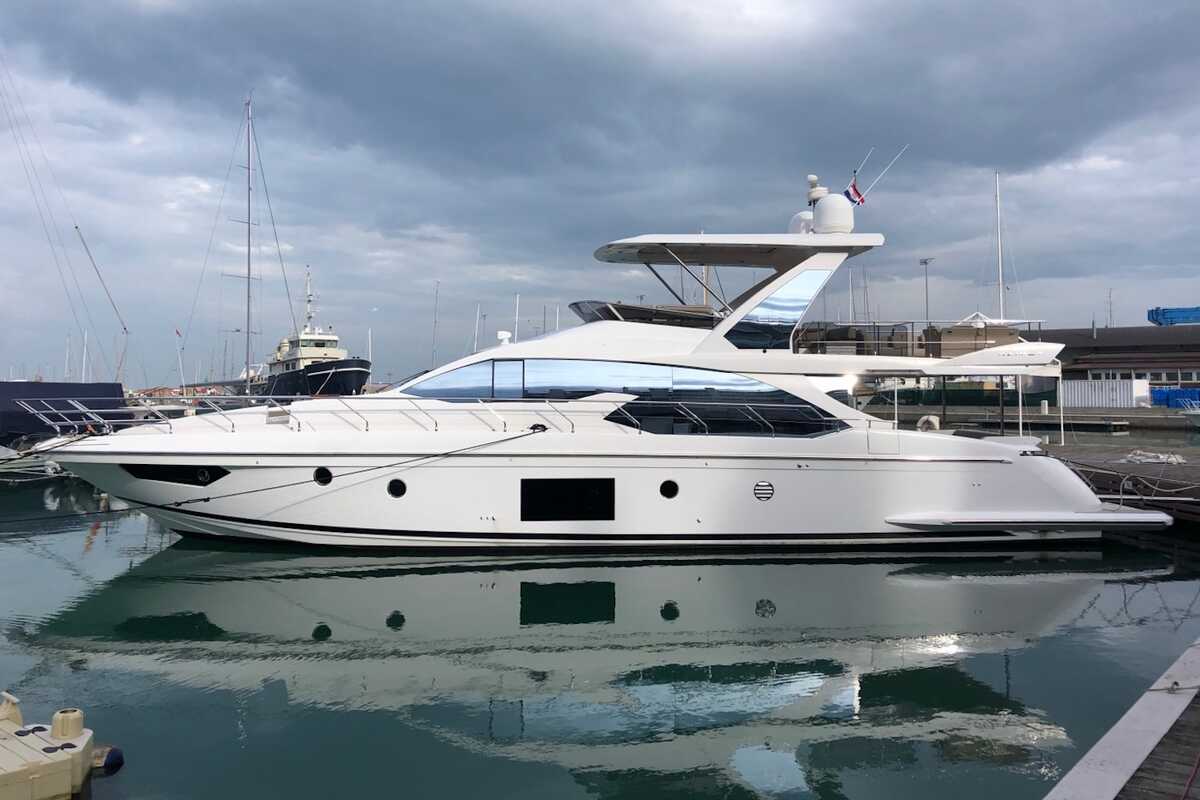

Luxury motor yacht Azimut 66

Structure and shape of hull

Construction materials and techniques have been carefully researched in order to find the best balance between quality, weight, and rigidity.
The hull, deck, deckhouse, trays and structures are made of high performance sandwich panel with PVC core to achieve maximum rigidity and impact resistance.
An infusion lamination system has been used for these parts, a technique that reduces weight while improving the control and quality of the construction.
Vinylester resin is used for lamination of the first layers of the hull. Due to its chemical and physical properties, this type of resin is extremely effective in preventing osmosis. Isophthalic resin is used for the remaining layers. Azimut is therefore able to provide a 5-year warranty against osmosis.

Elements made using infusion:

• Hull
• Deck
• Deckhouse
• Tray

Hull:

• Planing with large chines and spray rails to increase lift and reduce rolling
• Dead rise at stern: 17°
• Dead rise at center of hull: 20°

Propulsion
Main engines

• Quantity Two
• 6-cylinder diesel engines
• Manufacturer CATERPILLAR
• Model CAT C18 ACERT
• Max. power 847 kW (at 2300 rpm)

Marine gears

• Manufacturer ZF
• Model ZF 500-1A
• Reduction ratio 1:1.964

Propellers

• Quantity Two, designed to guarantee excellent performance and navigation comfort
• Type Five blades

Shafts

• Quantity Two
• Building material AQUAMET17
• Diameter 3"
• Length 3505mm
• Angle 10.7°
• Distance between centers 1640mm

Shaft support

• Material Brass axle supports
• Hull casings GR1, diam. 3"

Rudders

• Material STEEL TA60550/24 T-P
• Surface designed to ensure easy steering

Bow thruster

• Power supply 24V
• Power 10 kW

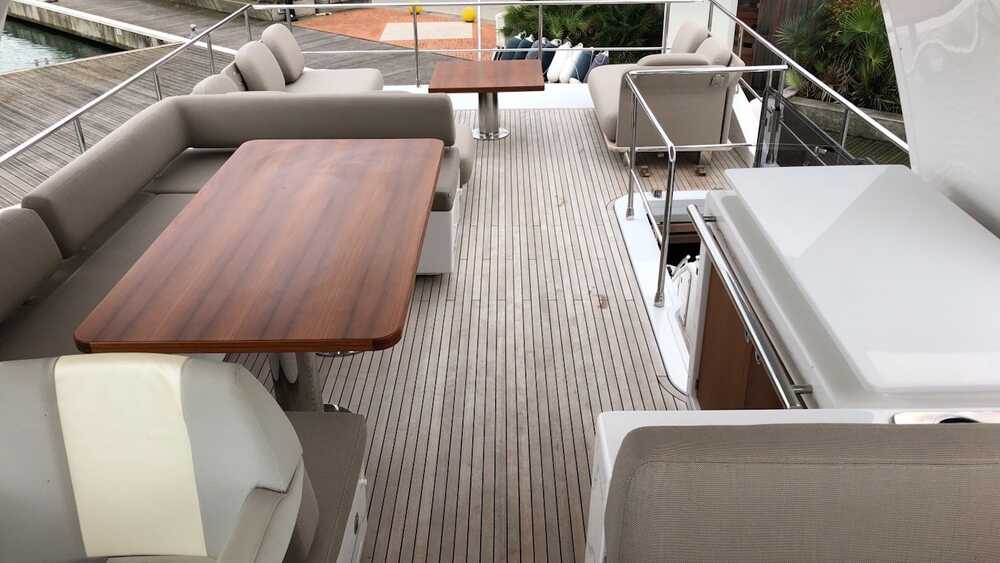

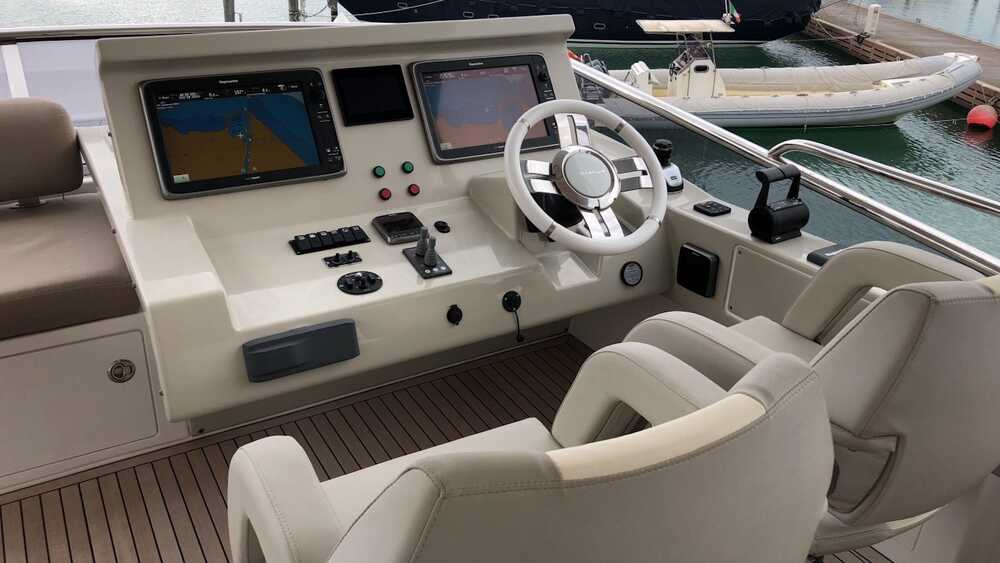

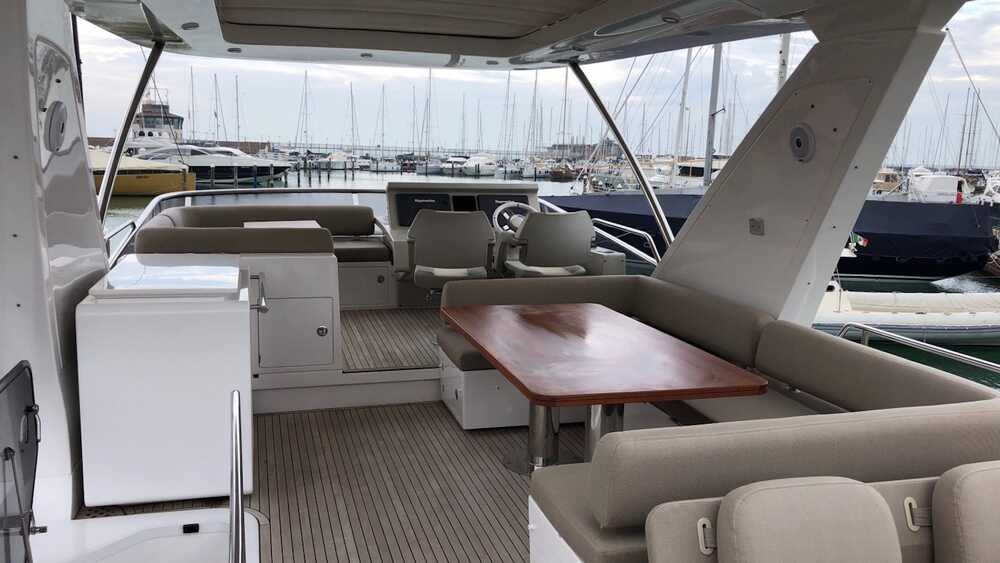

Flybridge

• Can be accessed from the port side of the cockpit via a GRP stairway with teak steps.
• Access door: hinged opening with hatchway in aluminum and plexiglas.
• Smokey plexiglas flybridge screen with stainless steel frame
• Helm seat for 1 person with manual depth/height adjustment
• Fore sundeck with cushions
• Seating for up to 8 people on starboard side, with under-seat locker
• Table for up to 8 people, with teak top  Roll bar in GRP with mirror windows on the sides
• Pilot console: Raymarine Bronze Package
• Flybridge unit with fridge
• Navigation lights
• Bow adjustable manual spot
• Flybridge instrument board consisting of:
•  engine display
•  BRONZE series electronic navigation instruments
•  engine start-up controls
•  bow anchor winch controls
•  horn control
•  bow thruster control
•  12V socket
•  chain meter counter
•  handles
• Scupper with stainless steel grid and logo
• “66” logos, placed externally on the roll bar  glass, one on each side
• "Azimut" logos, placed externally on the roll bar glass, one on each side

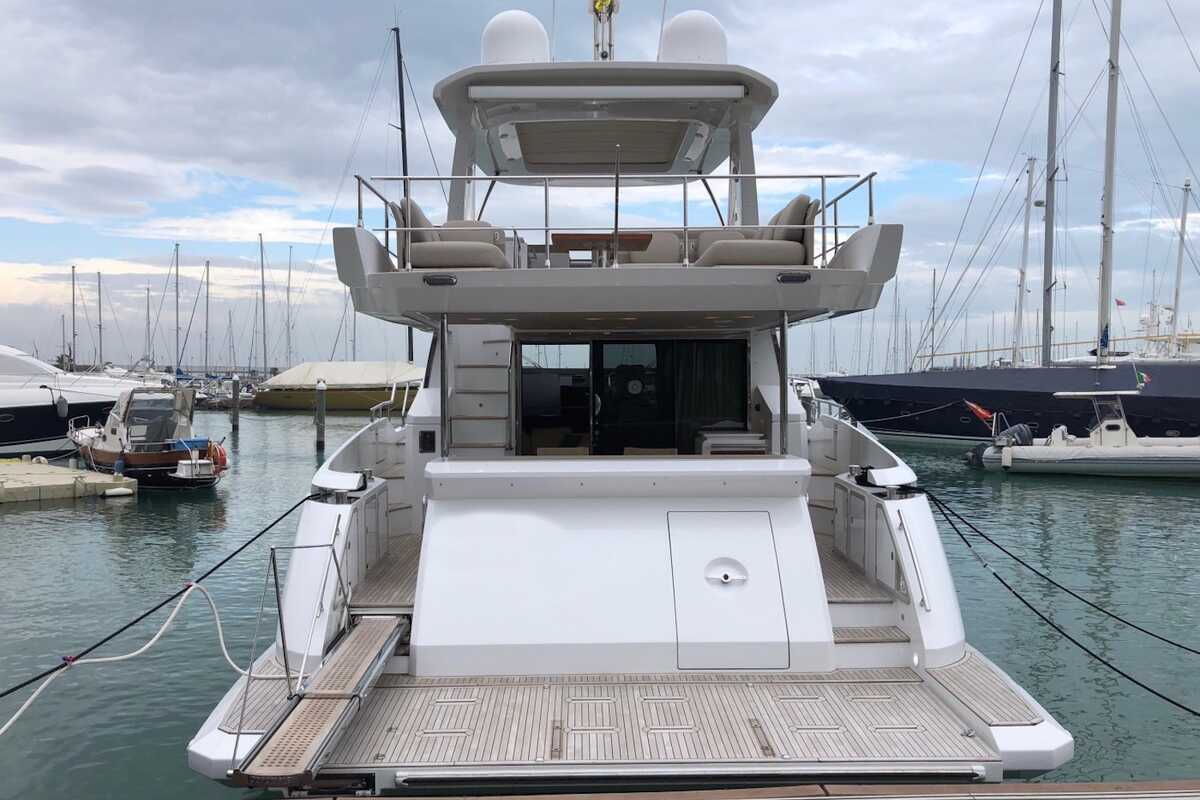

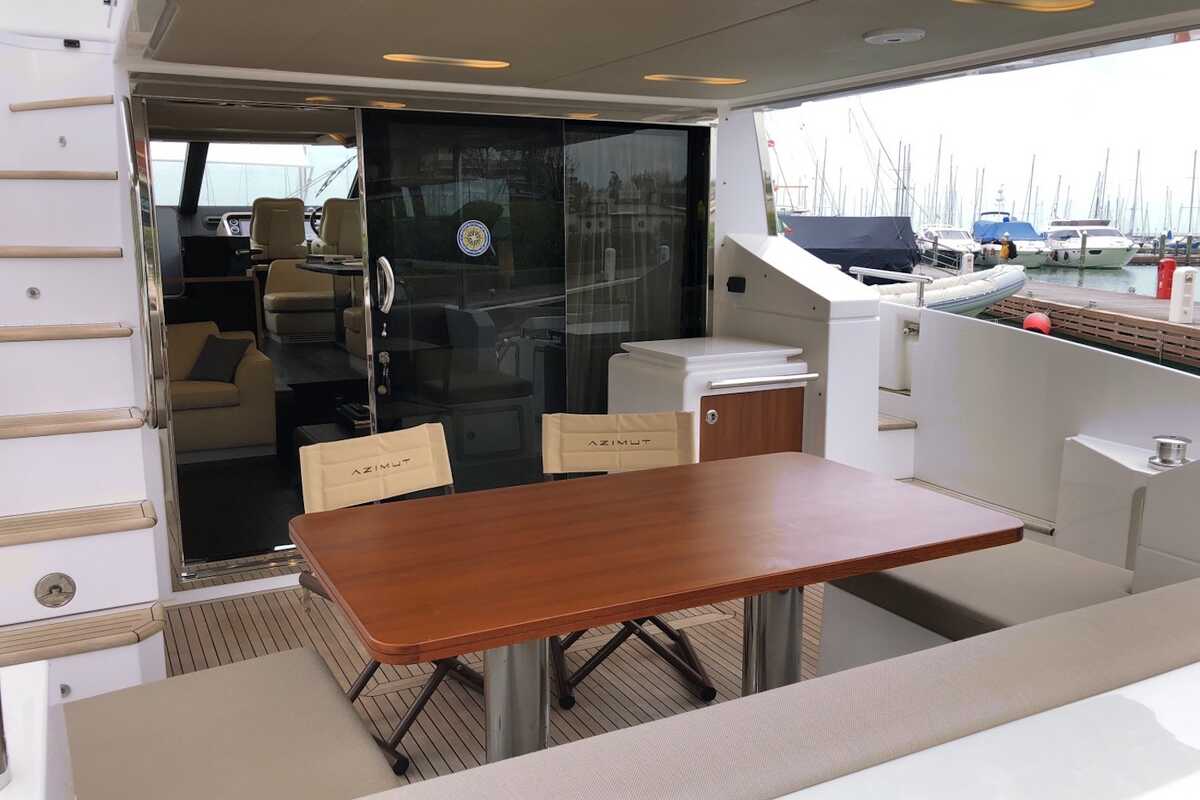

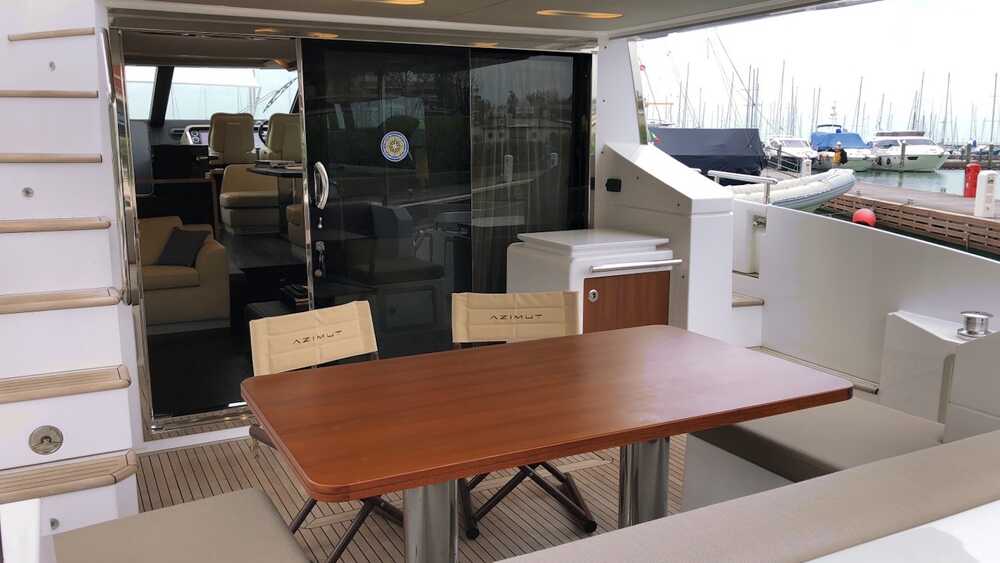

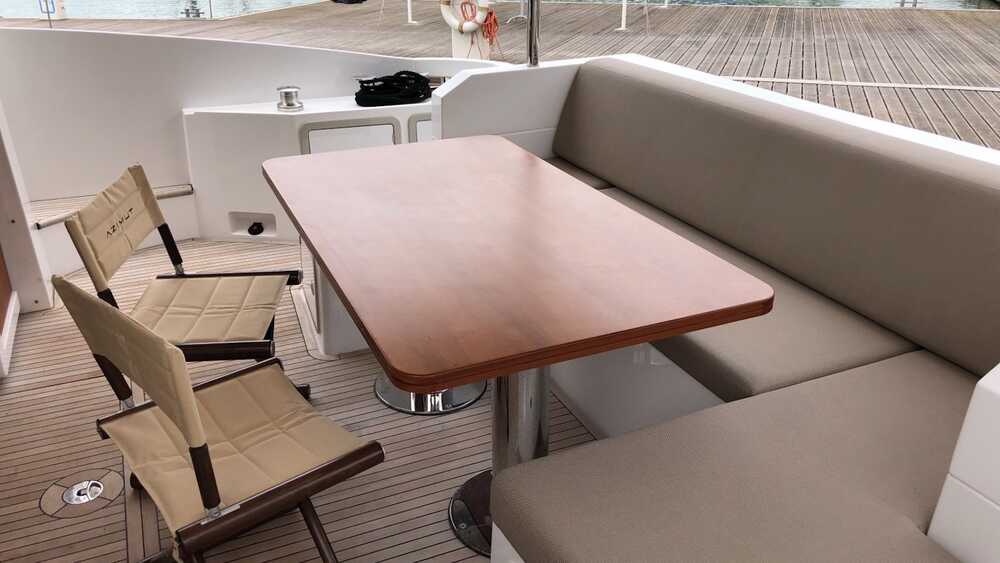

Cockpit and platform

• Access to cockpit from platform via GRP ladder on port and starboard side
• Bitts on warping station
• 2 stainless steel chocks
• Saloon door, 3 stainless steel panels (2 sliding) in tempered glass
• "C"-shaped cockpit bench with cushions and locker, for 5 people
• Faux leather cockpit bench outdoor cushions
• Lockers and side compartments in stairs leading to flybridge
• Engine room access
• Cockpit and platform teak decking
• 1 handrail for access to flybridge stairs
• Lighting: LED spotlights on ceiling
• Loudspeakers on cockpit cover
• Flybridge support posts on sides of cockpit bench
• Emergency panel-battery cut-out with controls for service, engine and generator battery cut-out
• Activation of engine room fire extinguishing system under port warping station
• Scuppers with stainless steel grids and Azimut logo
• 2 cockpit gates
• Lift platform with teak covering
• Rubber rub-rail with stainless steel insert
• Access to crew cabin with watertight door
• LED lighting on swimming platform
• Shower with hot and cold mixer tap
• 3-rung manual swimming ladder on port side
• INSTALLABLE TENDER:
• working dimensions of platform: 3.75 x 1.20 m
• effective load (excluding GRP, teak and ladder): 400Kg
• davit payload: 250Kg
• hypothetical flybridge tender: 2.75 x 1.45 m
• hypothetical Williams tender: 325 with petrol engine (stern)

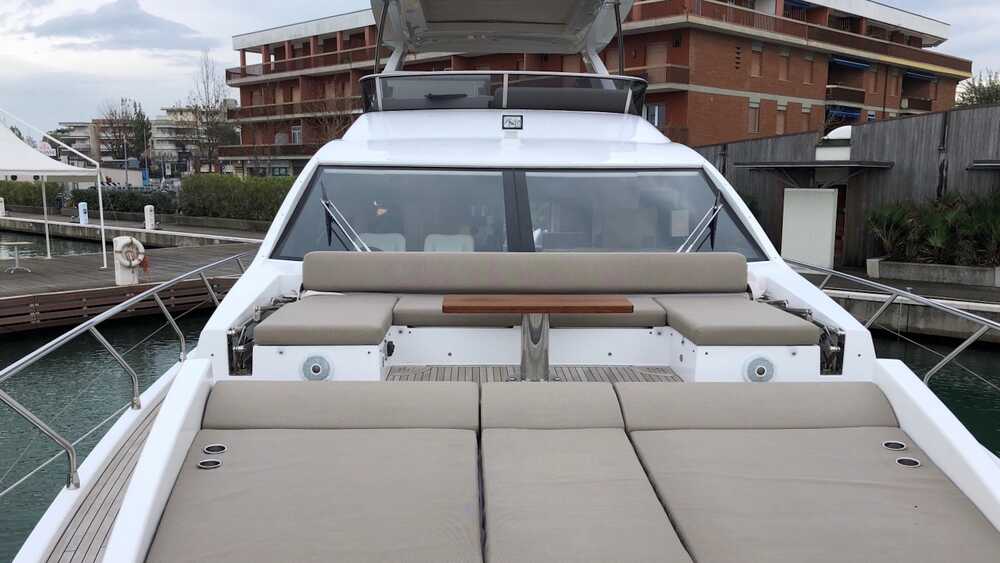

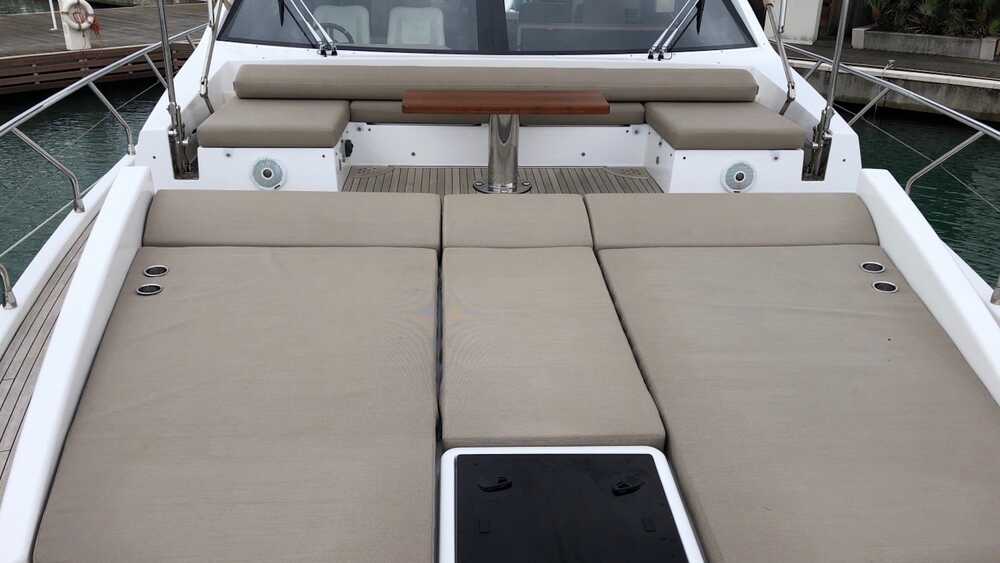

Bow / Side deck

• 2000W winch
• Anchor winch controls
• Chain locker with drainage and fender housing
• Chain wash pump
• DELTA 40 kg galvanized steel anchor
• 75-meter high-resistance gaged chain, diameter 10mm
• Stainless steel anchor nose for Delta anchor
• Non-skid floor
• 2 wipers for bow windscreen
• 2 stainless steel bitts
• Stainless steel mooring line anti-rubbing protection
• Hatchway (emergency exit)
• 2 bow grabrails for sunbed cushions
• Side net window and windscreen covers
• Sunbed cushions and cup holders
• Bow sofa in GRP complete with lockers and cushions
• LED lighting along base of sofa
• Access via door on both port and starboard sides (with ADV option)
• Stainless steel pulpit on side washboard
• Chocks on the washboard
• Tempered glass windows glued to the surrounding structure without any metal frame
• Electric sliding rectangular side windows in bow
• Rubber rub-rail with stainless steel insert
• Diesel and fresh water refills on side deck
• Black water tank discharge outlet on port side walkway
• Fresh water tank cable socket on starboard side walkway
• 2 midway bitts per side

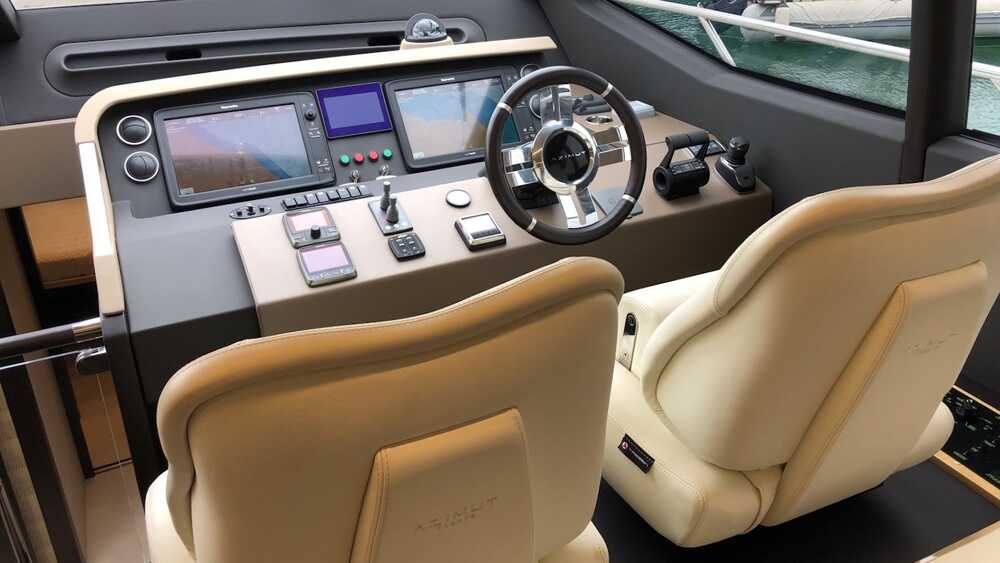

Wheelhouse

• Pilot console: Raymarine Bronze Package
• 7" engine control display
• Handles
• Adjustable spot
• Helm seat with electric depth/height adjustment
• Adjustable rudder
• Chain meter counter
• Magnetic compass
• 12V socket
• Electric steering gear control display
• Controls for:
• engine start-up
• bow anchor winch activation
• audible alarm
• light activation
• windshield washer activation
• opening of side windows (port and starboard)
• chain wash pump
• Grabrails for ladder descent

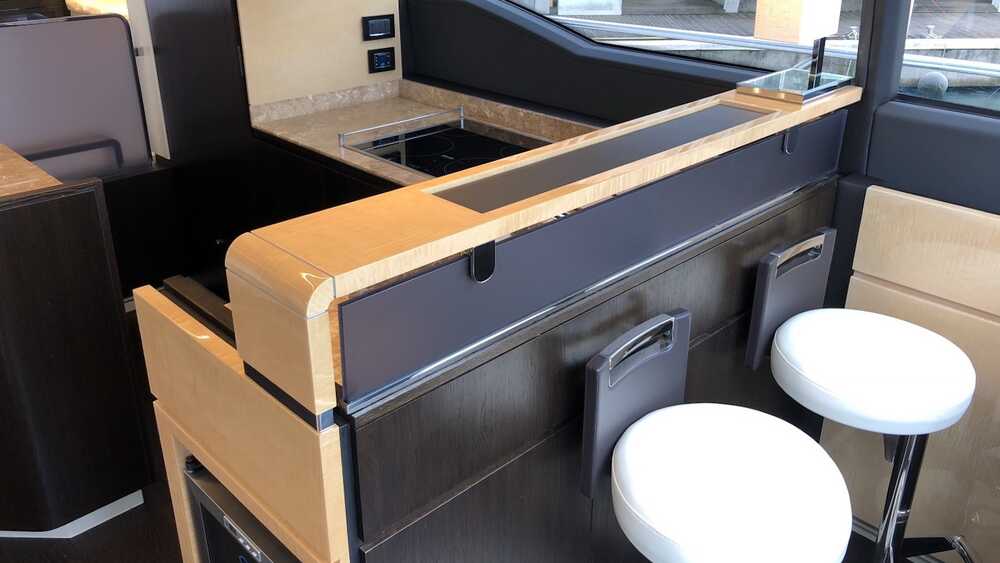

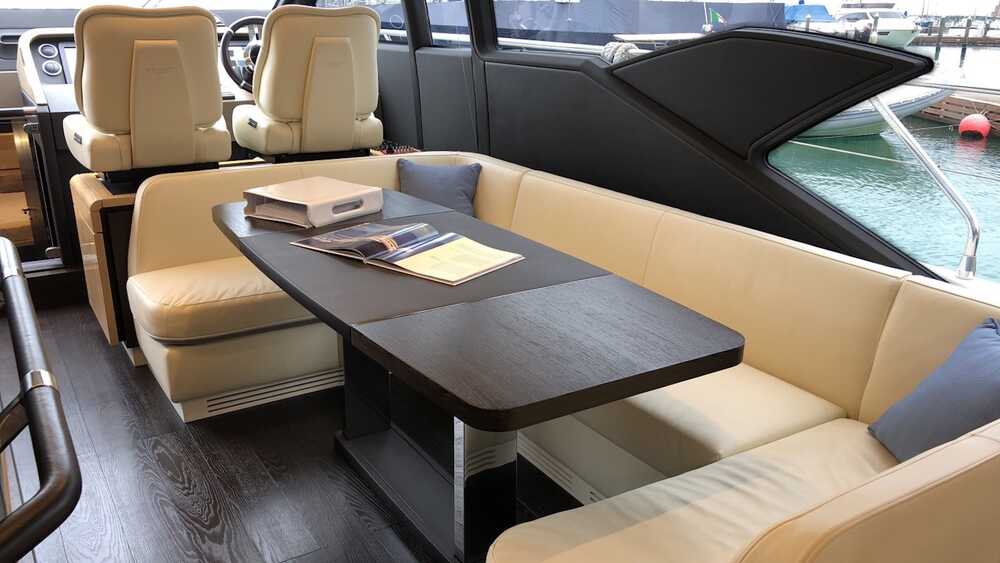

Saloon / Dinette

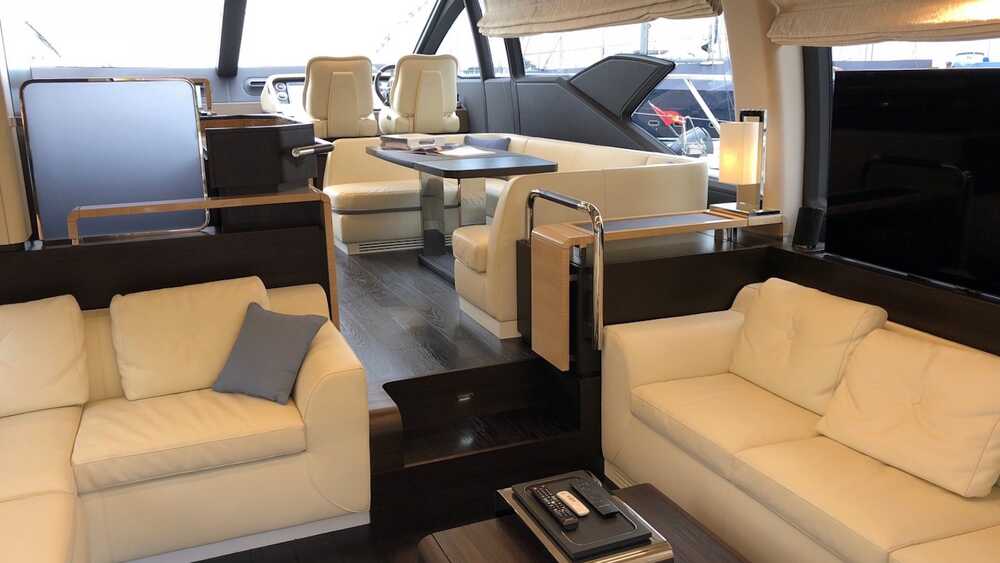

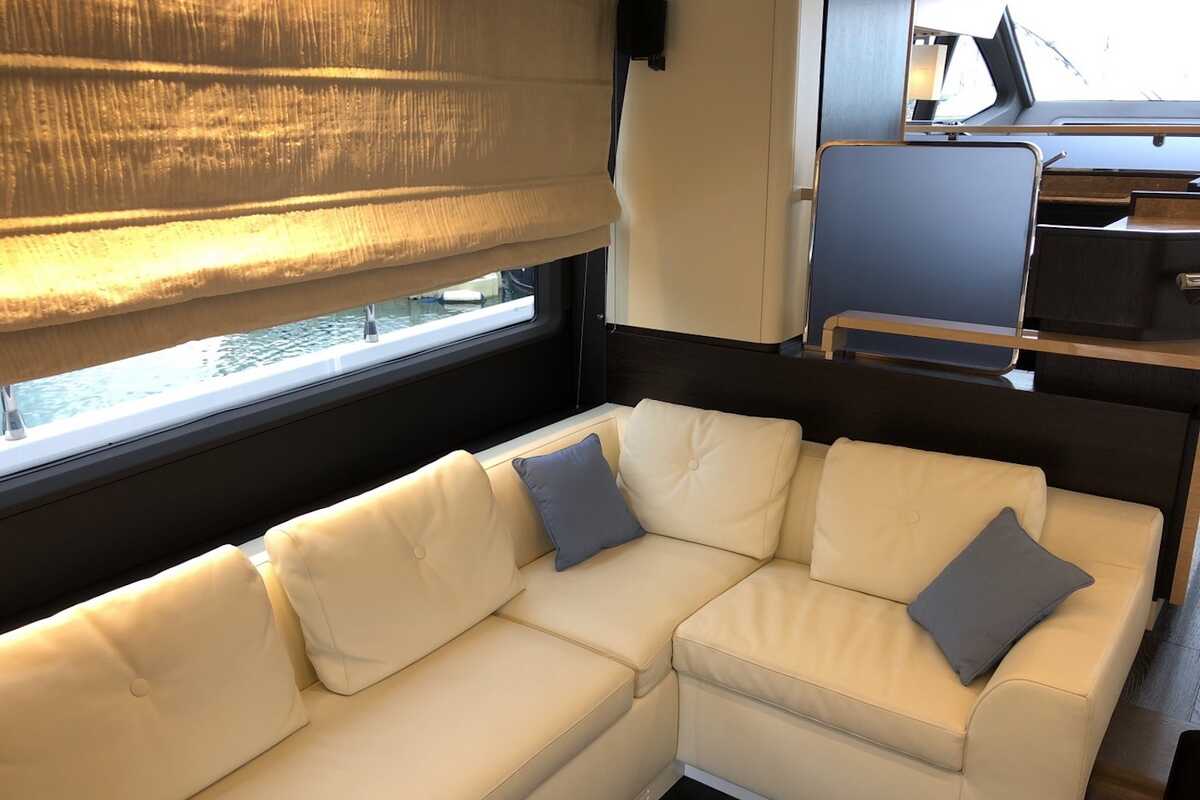

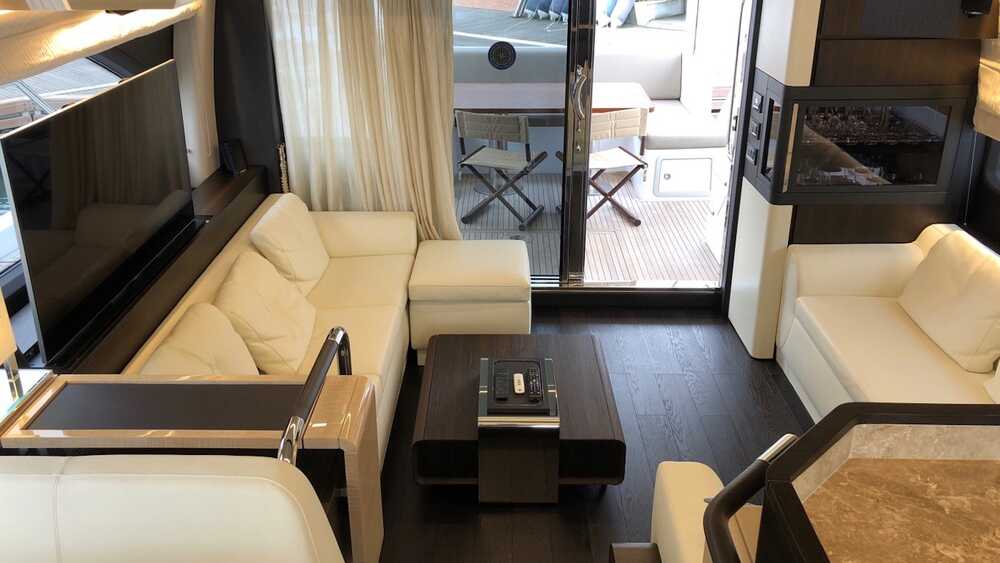

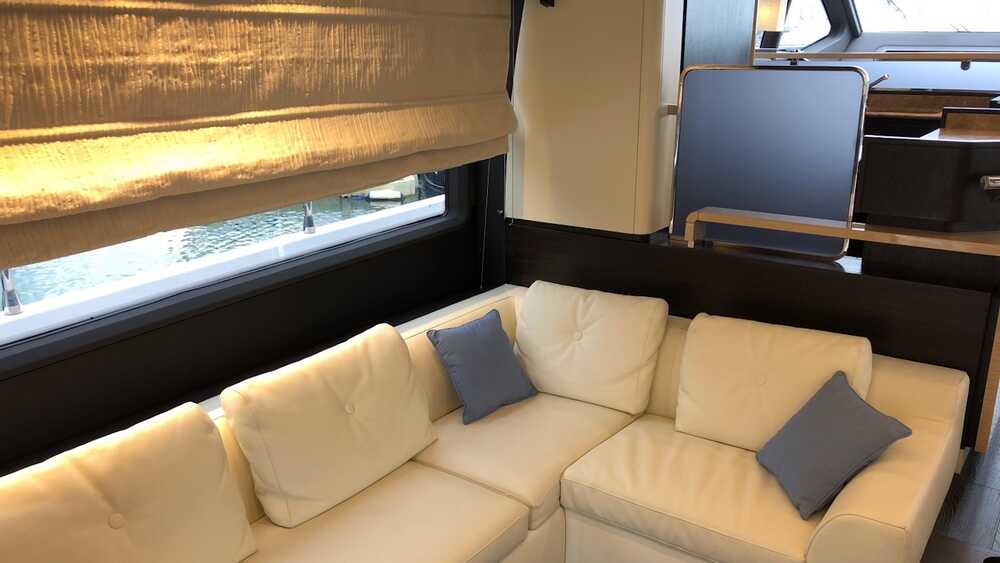

Saloon

• Carpeted floor with wooden edge around stairs leading to dinette
• 2 sofas:
• 4-seater sofa on port side
• 4-seater sofa on starboard side with pouf and storage underneath
• Radio or Hi-Fi on left column
• TV cabinet behind starboard sofa
• TV system setup
• Roman blinds on side windows
• Saloon door blind
• LED strip lighting on ceiling
• Port column with open glass-holder compartment
• Sockets and switches
• Divider shelf with cupboard underneath

Dinette

• Carpeted floor
• Electric panel
• "C"-shaped sofa for 5 people on starboard side
• Rectangular table
• Central below deck accommodation ladder with glass risers with carpeted illuminated steps
• Table lighting on ceiling
• Roman blinds on side windows

Galley

• Wooden floor
• Worktop in lightweight marble
• Saloon/dinette wooden furniture
• Stainless steel sink with mixer tap
• Fixed LED spotlights on varnished ceiling panel, and fixed spotlights under the wall unit between the galley and the saloon
• Four-burner ceramic glass range with stainless steel pot holder
• Extractor hood with active carbon filters
• Microwave oven + grill
• Chest fridge/freezer
• Socket

Corridor to access below-deck area

• Carpeted floor
• Lighting on the steps, LED spotlights on corridor ceiling
• Grabrail

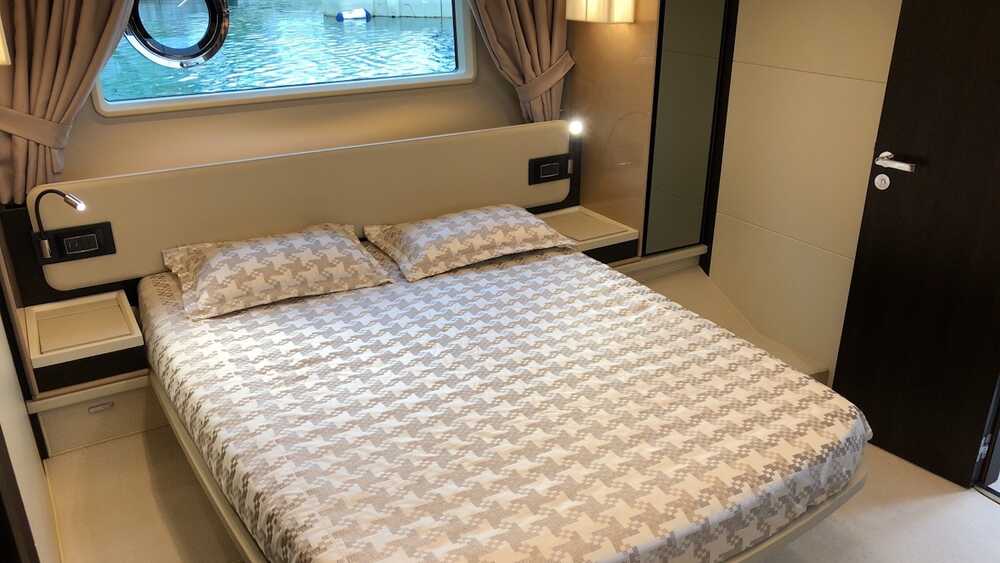

Owner's cabin (midship)

• Folding double bed with headboard on port bulwark
• Mattress, pillows and bedspread
• Underbed storage
• Dressing table with sofas on starboard side, with storage underneath
• Open wardrobe with full-height hanger bar and shelves
• Rectangular windows
• 1 openable porthole on each side
• TV system
• Storage with drawers under TV
• Carpeted floor
• Grabrail
• Sockets and switches
• Bedside tables with storage space
• Wooden Venetian blinds
• Starboard side wardrobe with shelves

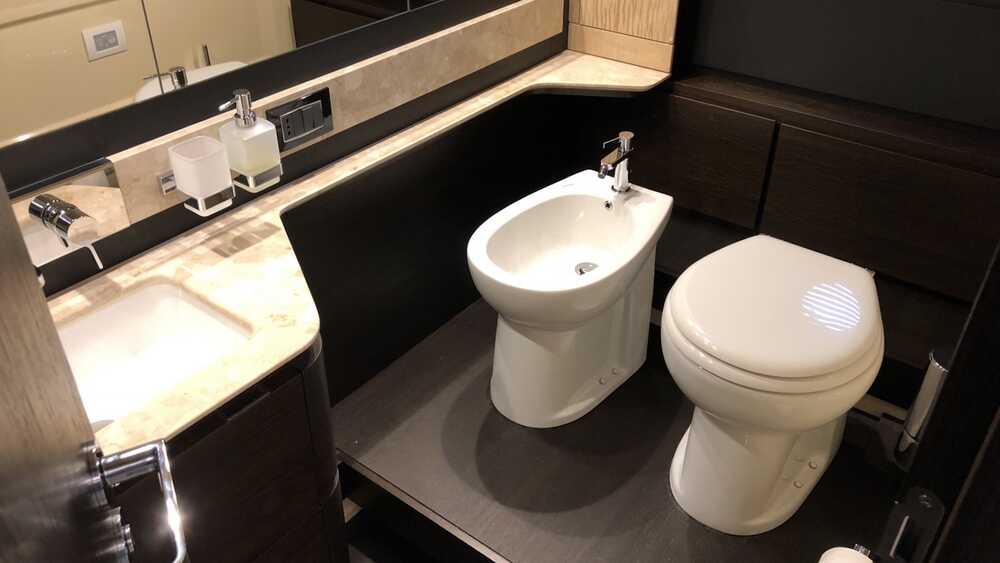

Owner's head

• TECMA toilet with 3 drawers behind
• ABS washbasin with chrome mixer tap and marble head top
• Cabinet with brown or cream varnished finish (for the other heads too), with large drawer
• Shower with thermostatic mixer tap
• Shower enclosure with glass door, seat and laminated wood floor
• Mirrors
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blinds
• Air extractor in the shower enclosure
• Sockets and switches
• Wall units
• Head accessories

Guest cabin (starboard side)

• 2 fixed, parallel, single beds
• Mattress, pillows and bedspread
• Central nightstand
• Wardrobe with hanger bar and shelves
• 2 openable round portholes
• 2 LED wall lights
• LED lighting with ceiling spotlights
• Carpeted floor

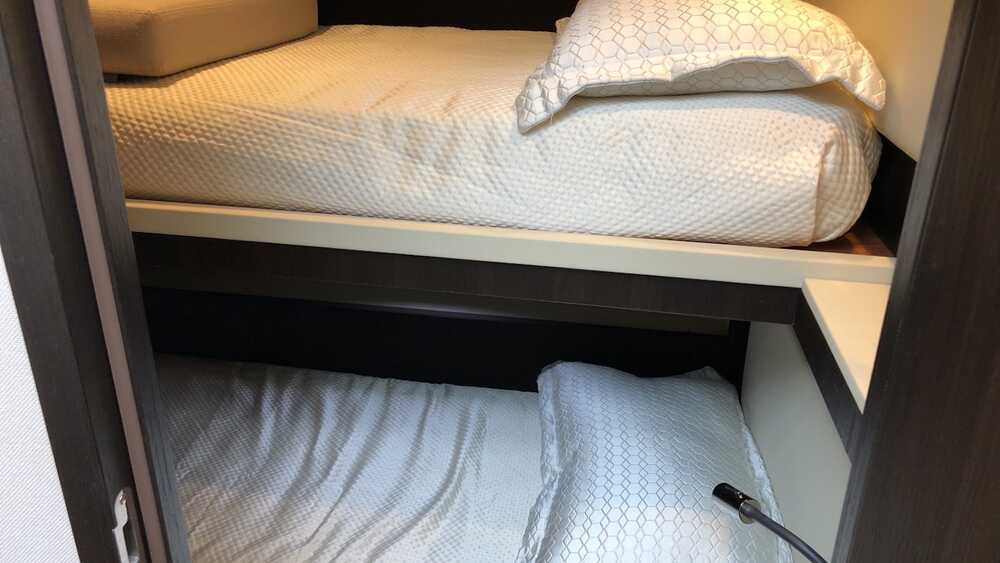

Guest cabin (port side)

• 2 bunk beds
• Mattress, pillows and bedspread
• Central nightstand
• Wardrobe with hanger bar and shelves
• 1 openable round porthole
• 2 LED wall lights
• LED lighting with ceiling spotlights
• Carpeted floor

Guest head

• Access from guest cabin and from corridor
• TECMA toilet
• ABS washbasin with chrome mixer tap and marble head top
• Cabinet under washbasin with towel rail
• Wall unit with 2 sliding mirror panels
• Shower with mixer tap
• Owner type shower enclosure with glass door
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blind
• Air extractor in the shower enclosure
• Laminated surfaces in head
• Head accessories

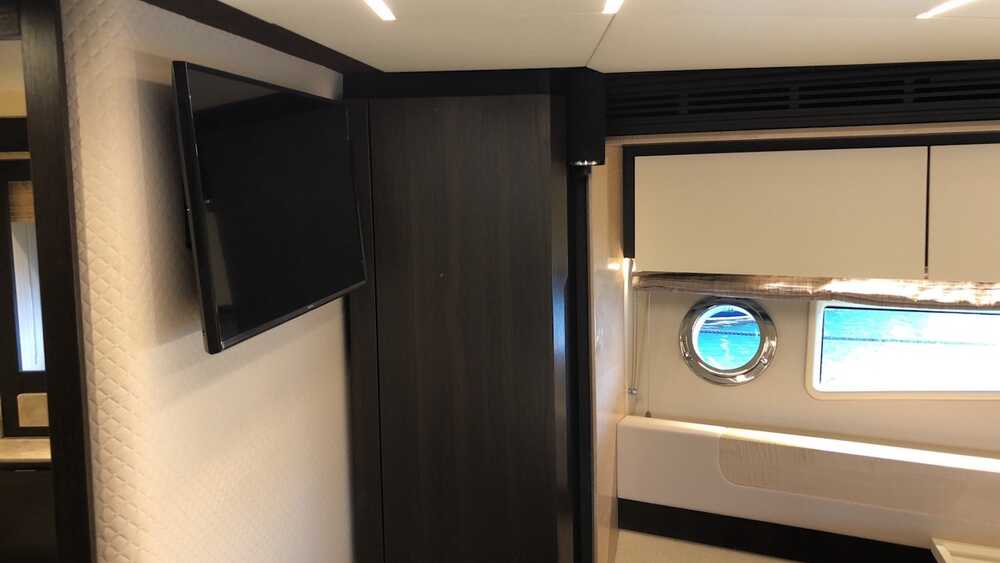

VIP cabin

• Located towards the bow of the below deck area, it is accessed via a central corridor
• Folding double bed with storage underneath and storage drawer
• Mattress, pillows and bedspread
• 2 wardrobes (one on each side) with cedar interior
• 4 wall units (two per side) with folding panel above the windows
• LED strip on ceiling and behind curtain pelmet
• LIGHTING: 3 LED spotlights on ceiling
• 1 openable porthole on each side
• Panoramic windows on both sides
• Hatchway for accessing the bow sundeck
• TV system
• Carpeted floor

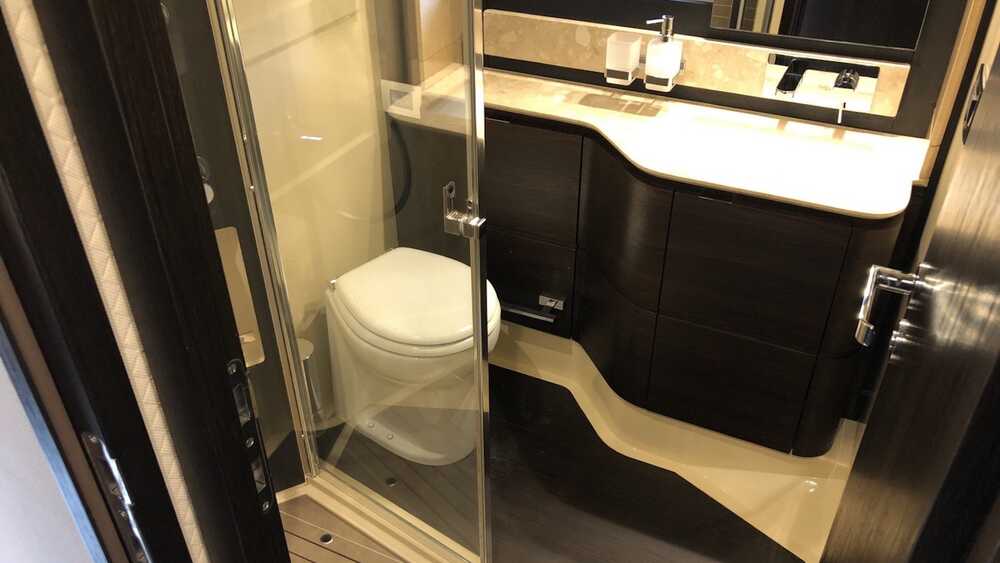

VIP head

• TECMA toilet
• ABS washbasin with chrome mixer tap and marble head top
• Cabinet with brown or cream varnished finish, with large drawer
• Shower with thermostatic mixer tap
• Shower enclosure: flat glass door
• Mirrors
• Wooden flooring
• LED spotlights
• Openable porthole with Venetian blinds
• Air extractor in the shower enclosure
• Wall units
• Head accessories

Crew room
Crew cabin

• Access from watertight door on platform
• 2 beds
• Mattress, pillows and bedspread
• Wardrobes, wall units and under-bed lockers
• 1 oval porthole on starboard side
• GRP non-slip floor
• Fabric curtain for porthole

Crew head

• Access from crew cabin
• TECMA toilet
• 1 oval porthole
• Washbasin with chrome mixer tap with extractable shower head
• Shower with transparent plexiglas door
• Head accessories

Electric system

Voltage levels on board:

• 220V AC - 50Hz
• 24V DC, 12V DC

Galvanic current insulation

• zinc cathodes

Generator

• 1 generator 7 KW in the engine room

Shore power sockets

• 2 230V, 50Hz power sockets
• The AC power sources are controlled from the main electric panel in the crew cabin, with a digital multimeter for the 230V network.
• The energy sources are protected by power circuit breakers and their introduction in the network is made by remote control switches.

Batteries

• 10 batteries 90Ah 24V, including:
• 6 for services
• 4 for engine start-up
• 1 battery GM 50Ah 12V for generator
• 1 battery GM 50Ah 12V for bow thruster

Battery charging

• 1 battery charger 12V 10A for generators
• 1 battery charger 24V 80A for service and start-up batteries

Utilities - electric panels

• The main electric panels are installed in the crew cabin (main panel) and dinette
• Junction boxes are installed in all areas.

Lights and sockets

• 24V lighting: LED spotlights on ceiling, emergency lighting, and ceiling lights
• 230V AC sockets: main lighting
• 12V DC sockets: cigarette lighter type

Electronic navigation instruments

• For STD equipment, see the paragraphs on “flybridge instrument board equipment” and “internal instrument board equipment”
• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

Bilge system

• 3 automatic motor pumps 24V, capacity 224L/min, in the cabin area, owner's cabin, engine room and auxiliary sites
• 1 supersub smart 650 electric bilge 24V (24 l/min - 2,040 l/h, with 1m head)
• 2 manual pumps in cockpit and owner's cabin
• 3-way valve on engine cooling (emergency intake in engine room connected to one of the two engine seawater intakes)
• 3 bilge level alarms

Fire extinguishing system

• 1 12 kg powder extinguisher with spray nozzles on engines and marine gears

Fuel system

• 2 steel tanks with a capacity of 1950 l
• Electronic level gage for port diesel tank on wheelhouse display
• Optical level gage on starboard diesel tank
• Filling on each walkway, and venting on the bulwarks
• 2 single filters

Fresh water system

• 1000-liter stainless steel tank beneath the fore tray, towards the middle of the boat
• Filling on the starboard side walkway
• Level sensor with electronic gage on wheelhouse display
• 80-liter water heater 220V -1200W
• Pressure pump
• Hot/cold water in all bathrooms, galley and platform shower head
• Cold water in engine room, cockpit and flybridge
• Fresh water toilet flushing

Gray water system

• Water drainage into tank (200-liter capacity) in fore area
• Level sensor with automatic pump and alarm control from the wheelhouse
• Water drainage via manifolds 24V membrane pump
• Additional tank (9-liter capacity) in polyethylene beneath the crew cabin and beneath the owner's head floor
• Level sensor with automatic pump activation

Black water system

• 1 tank with 350-liter capacity in fore area
• Level sensor - tank drainage is controlled manually from the wheelhouse
• Water drainage via 24V membrane pump
• Vent on bulwark, with anti-odor filter
• Drainage from pier, on port side walkway

Seawater system

• Engine cooling with 2 dynamic 3" seawater intakes with filter and valves
• Generator cooling with 1 seawater intake (1'') with filter and valve – submerged outlet
• Conditioner cooling with 1 dynamic seawater intake (1'') with filter and valve - submerged outlet
• Chain wash pump with 1 dynamic seawater intake (1") with valve

Engine room

• Access from door in cockpit
• Bilge drainage pump for cooling the engines

Gas outlets

• Submerged discharge system with minimum external by-pass
• Stainless steel drainage manifolds
• Structural mufflers in GRP

Air conditioning system (OPT)

• CONDARIA cooling system for air conditioning (water system), World version - 92,000 BTU  A/C COMPRESSOR:
• 1 single compressor in engine room, on port side of generator, with electric panel facing towards the middle of the boat

FANCOILS:

• 6,200 + 14,800 BTU for the saloon + dinette
• 16,000 BTU for the galley
• 16,000 BTU for the wheelhouse area and windscreen
• 9,200 BTU for the owner's cabin, with delivery in owner's head
• 9,200 BTU for the VIP cabin, with delivery in VIP head
• 6,200 BTU for the guest cabin
• 6,200 BTU for the crew cabin
• Control panel for each area

Ventilation

• Head extraction system via 24V gas extractors with control in head
• 2 fans and 2 extractors in engine room with grid on side deck

Hydraulic system

• 24V electro-hydraulic pump for trim tabs
• 24V electro-hydraulic pump for gangway and swimming platform

Equipment

• 1 hook for telescope
• 5 anchor lines
• 24 m fender lines
• 1 safety system for anchor
• 8 fenders
• 8 black fender covers
• 1 Owner's Manual
• 1 stainless steel cutlery service
• 1 set of china plates
• 1 set of glasses
• 1 set of stainless steel cooking pans
• 4 sets of towels (with logo)
• 1 bottle of "MONSORDO MAGNUM"
• 1 clock with glossy brass case
• 1 barometer with glossy brass case
• 4 float key-holders
• 1 bag (with logo) for storing the manuals
• 1 remote control holder (with logo)
• 1 bag for holding the shower tube
• 1 routine maintenance kit for steels
• 1 pin wrench for locking stainless steel pins
• Covers for flybridge cushions and instruments, and cockpit
• Net window coverings
